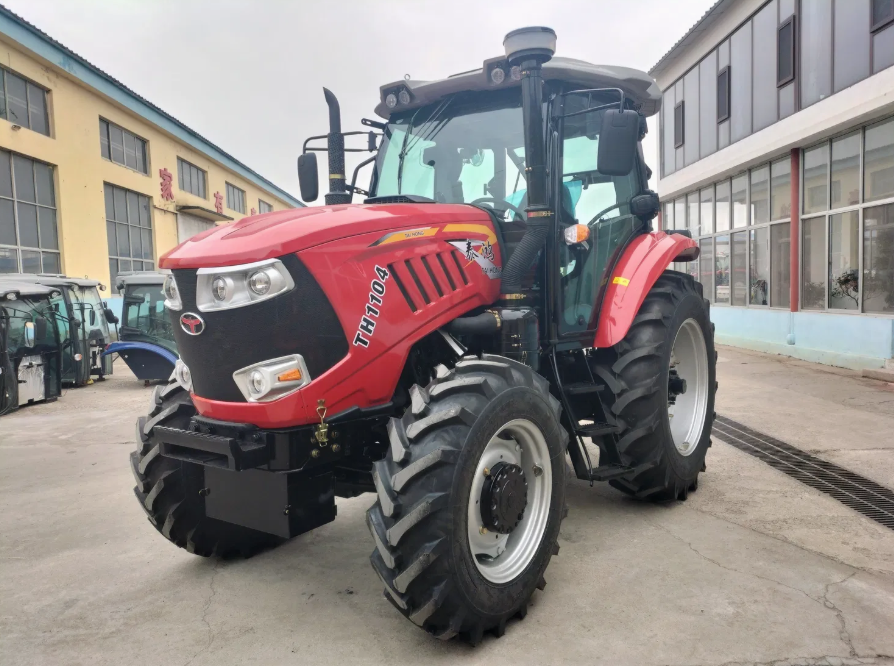

| Model | TH1104 | ||||||||||
| Type | 4WD | ||||||||||
| Size (mm) | Length(to front ballast) | 4925 | |||||||||
| Width | 2300 | ||||||||||
| Height(to top point) | 2850 | ||||||||||
| Wheel Tread | Front | 1650/1850/1950 Step adjustable | |||||||||
| Rear | 1700-2300 stepless adjustable | ||||||||||
| Axle Base | 2660 | ||||||||||
| Ground Clearance | 425 | ||||||||||
| Structure weight (kg) | 4280 | ||||||||||
| Engine | Model | Six-cylinder Weichai brand engine | |||||||||
| Type | 6-Cylinder,Water Cooled | ||||||||||
| Rated Power(kw) | 80.8 | ||||||||||
| Rated speed(r/min) | 2200 | ||||||||||
| Fuel | Diesel | ||||||||||
| Tire | Front Wheel | 13.6-26 | |||||||||
| Rear Wheel | 16.9-38 | ||||||||||
| Clutch | Double-stage clutch | ||||||||||
| Steering | Hydraulic steering | ||||||||||
| Transmission Type | 16F+8R | ||||||||||
| Suspension Type | 3-point links | ||||||||||
| PTO | Type and speed | dual speed: 760rpm/850rpm | |||||||||
| Spline Size | I38 Rectangle Spline with 8 teeth | ||||||||||
