| Product model | TH1204 | ||||||
| Wheel drive | 4×4 wheel | ||||||
| Dimension(L x W x H )mm | 4550 x 2250 x 2900mm | ||||||
| Weight(kg) | 4500kg | ||||||
| Front wheel tread(mm) | Front Tread:1650,1850,1950Adjustable | ||||||
| Rear wheel tread(mm) | Rear Tread:1700-2300Adjustable | ||||||
| Wheel base(mm) | 2265 | ||||||
| Min land clearence (mm) | 400 | ||||||
| Gear shifts | 16F+8R shift | ||||||
| Tire size | standard tire:13.6-24/16.9-34 | ||||||
| Steering gear | Hydraulic steering | ||||||
| Rear Suspension | Three point linkage | ||||||
| Engine Specification | |||||||
| Engine model | YTO 4 cylinder engine | ||||||
| Engine type | water cooled, vertical,4 stroke and direct injection | ||||||
| Rated power(kw) | 66kw/73.5kw/80.8kw/88.2kw | ||||||
| Rated revolution | 2300 r/min | ||||||
| Start way | Electric start | ||||||
| Fuel | Diesel | ||||||
| Clutch | Dula-stage clutch | ||||||
| PTO Type | 540/1000rpm | ||||||
| PTO speed | I35 Rectangle Spline with 6 teeth | ||||||
Agricultrual Equipment
HARMAC

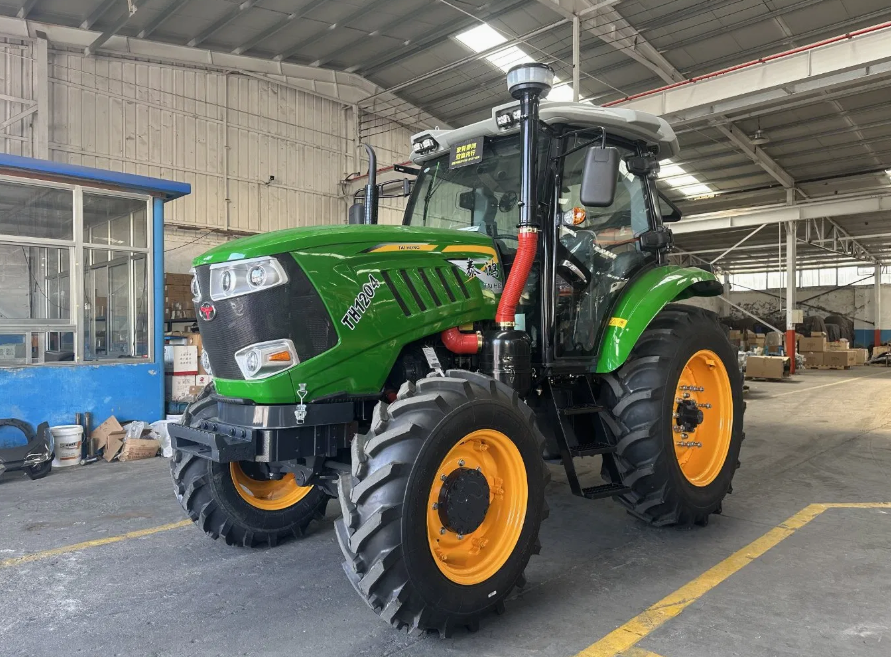

120HP Farm Tractor
Model: TH1204
A farm tractor is a powerful vehicle designed for agricultural tasks, primarily used to tow or push farming equipment and machinery. Tractors are essential for various farming operations, such as plowing, tilling, planting, harvesting, and transporting materials.
Brand
HARMAC
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
