| Operation Weight | 13.5 Ton |
| Bucket Capacity(M³) | 0.6 |
| Traveling Speed(Km/H) | 2.9/4.6 |
| Gradeability(°) | 30 |
| Bucket Max.Digging Force(KN) | 91 |
| Arm Max.Digging Force(KN) | 55 |
| Engine Model | GJ-4JJ1XKSC01 |
| Power/Rotation Speed(KW/Rmp) | 85/2200 |
| System Pressure(MPa) | 32 |
| Working Range | |
| Max.Digging Height(Mm) | 8540 |
| Max. Dumping Height(Mm) | 4058 |
| Max.Digging Depth(Mm) | 5095 |
| Max.Vertical Digging Depth(Mm) | 5100 |
| Max.Digging Radius(Mm) | 8000 |
| Min.Swing Radius(Mm) | 2445 |
| Dimensions | |
| Length*Width*Height(Mm) | 7635*2500*2750 |
| Cabin Height(Mm) | 2750 |
| Sproket To Idler(Mm) | 2950 |
| Axle Distancer(Mm) | 2000 |
| Min.Ground Clearance(Mm) | 400 |
| Tail Swing Radius(Mm) | 2340 |
Earthmoving Equipment
HARMAC

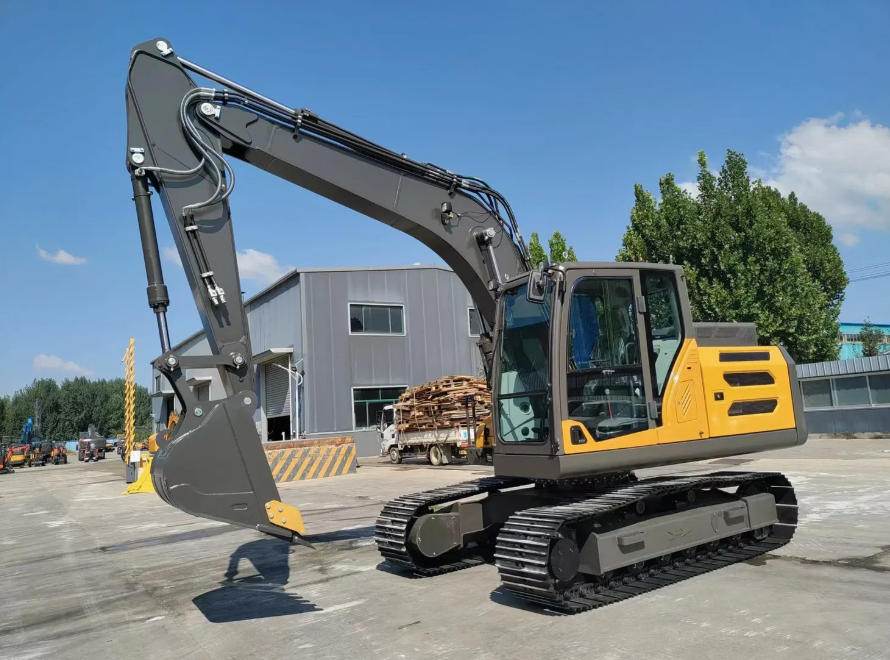

13.5 Ton Excavator
Model: HM135
An excavator is a versatile construction machine primarily used for digging, lifting, and moving materials like soil, rock, and debris. It consists of a base (tracked or wheeled), a hydraulic arm, and a bucket. Excavators are essential for construction, mining, and demolition work.
Brand
HARMAC
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
