| L*W*H (Ripper not included) | mm | 5750*3725*3395 |
| Operating weight (Ripper not included) | t | 23.4 |
| Engine | – | |
| NT855-C280S10 | ||
| Rated power | kW/rpm | 162/1800 |
| Gradeability | ‘ | 30 |
| Blade type | – | Straight tilt blade U-blade |
| Blade width | mm | Straight tilt blade 3725*1315 |
| Dozing capacity | m3 | Straight tilt blade 6.4 |
| Ma* drop below ground of blade | mm | 540 |
| Lift height of blade | mm | 1210 |
| Ripper type | Single ripper Three-shank ripper | |
| Ripping depth of ripper | mm | Single ripper 695 |
| Three-shank ripper 666 | ||
| Lifting height of ripper | mm | Single ripper515 |
| Three-shank ripper 555 | ||
| Number of carriers (each side) | – | 2 |
| Number of track rollers (each side) | – | 6 |
| Number of track shoes (each side) | – | 38 |
| Width of track shoe | mm | 560 |
| Track gauge | mm | 2000 |
| Ground length and ground pressure | mm/MPa | 2730-0.077 |
| Pitch | mm | 216 |
| Forward speed | km/h | 0-3.6 |
Bulldozer
SHANTUI

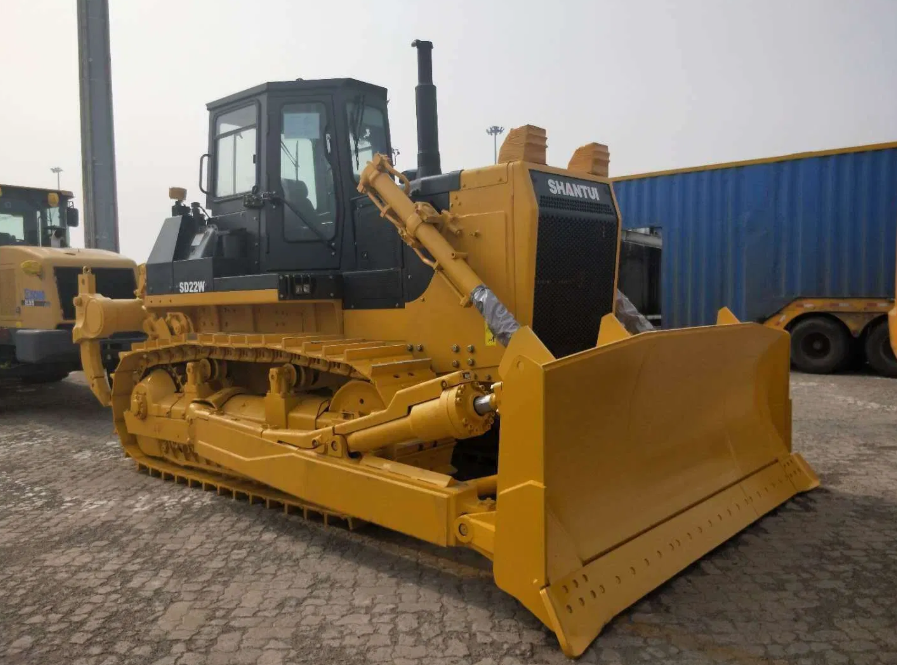

22 Ton Crawler Bulldozer
Model: SD22
Bulldozer is a powerful tracked machine designed for pushing, leveling, and clearing soil, sand, and debris. It is widely used in construction, mining, road building, and land development projects for heavy-duty earthmoving operations.
Brand
SHANTUI
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
