| WEIGHT AND DIMENSIONS | Weights | Operating weight | 28000 kg | |
| Axle load, front | 14000 kg | |||
| Axle load, rear | 14000 kg | |||
| Compaction characteristic | Static linear load, front/rear | 618/762 N/cm | ||
| Working width | 3520 mm | |||
| Drum diameter | 1700 mm | |||
| Wheelbase | 3500 mm | |||
| BLADE | Maximum lifting height | 1148 mm | ||
| Maximum cutting depth | 150 mm | |||
| Blade capacity | 12 m3 | |||
| ENGINE AND DRIVE TRAIN | Engine | Make & model | Shangchai SC9DK260G3/Weichai WP10G240 | |
| Type | Turbocharged | |||
| Fuel | Diesel | |||
| Cooling | Water | |||
| Number of cylinders | 6 | |||
| Rated power | 193/178 kW | |||
| Rated speed | 2200 rpm | |||
| Drive Train | Minimum ground clearance | 465 mm | ||
| Maximum climbing ability | 100% | |||
| Forward speed | I | 0~4.82 km/h | ||
| II | 0~7.66 km/h | |||
| III | 0~11.6 km/h | |||
| Reverse speed | I | 0~4.82 km/h | ||
| II | 0~7.66 km/h | |||
| III | – | |||
| CABIN& CONTROLS | Brakes | Service brake | Pressurized air braking | |
| Parking brake | Mechanical | |||
| Steering | Steering system | Oscillating, articulating | ||
| Steering method | Hydrostatic | |||
| Steering angle (Grad) | ±36° | |||
| Oscillating angle (Grad) | ±8° | |||
Landfill Compactor
HARMAC

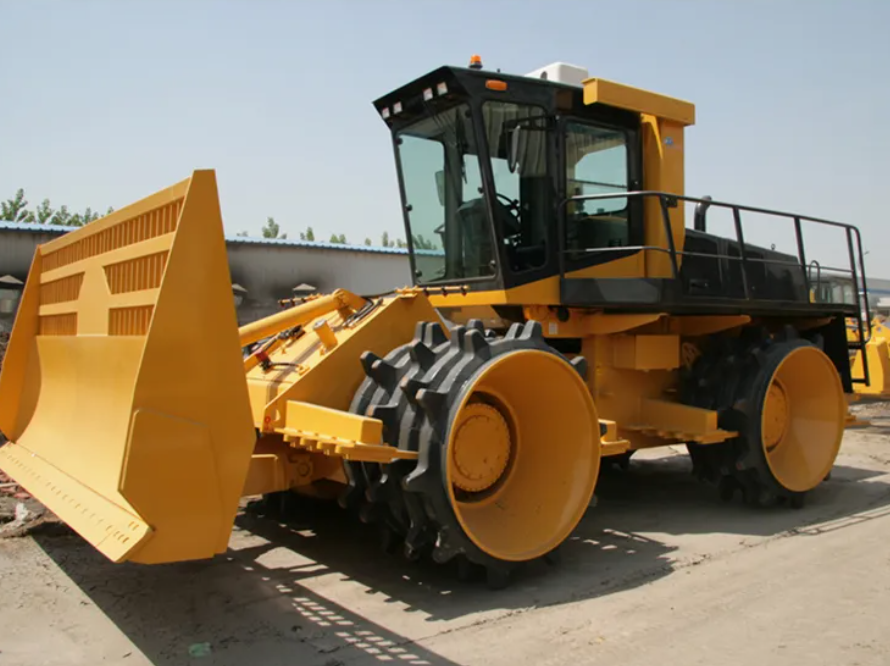

28 Ton Landfill Compactor
Model: GYL283
Landfill Compactor is a heavy-duty machine designed to compress and compact waste in landfill sites, reducing volume and increasing ground stability. It improves landfill efficiency, extends site lifespan, and ensures better waste management operations.
Brand
HARMAC
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
