| Model | TL404 | ||
| Type | 4×4 | ||
| Machine parameters | PTO power (KN) | 29.5 | |
| Rated Traction( KN) | 6.5 | ||
| Dimensions(mm) | 3300×1440×1870 | ||
| Wheelbase(mm) | 1975 | ||
| Track(mm) | Front wheel | 1225-1425 | |
| Rear wheel | 1160-1300 | ||
| Minimum ground clearance(mm) | 290 | ||
| Turning circle radius | Unilateral braking | 2.3 | |
| Not unilateral braking | 3 | ||
| Weight (KG) | 1402 | ||
| Drive Train | Clutch | Single stage cluth | |
| Gearbox | 8+2 shift | ||
| Walking steering | Tire | Front wheel | 6.00-16/6.5-16 |
| Rear wheel | 9.4-24/11.2-24 | ||
| Braking system | Service brake | Wet, disc, hydrostatic | |
| Parking brake | Independent hand brake | ||
| Working equipment | Maximum lifting force at 610mm(KN) | 6.64 | |
| Suspension mechanism | Three-point suspension type 1 | ||
| PTO shaft | PTO speed r/min | 540/760 | |
| Engine | Engine brand | LAIDONG | |
| Engine type | Diesel engine | ||
| Engine cylinder | 4 | ||
| Start | Start method | Electric | |
| Main fill volume | Radiater | 10 | |
| Fuel tank | 29 | ||
| Engine oil pan(L) | 5 | ||
| Driveline oil (L) | 20 | ||
| Lifter(L) | 9.5 | ||
Agricultrual Equipment
HARMAC

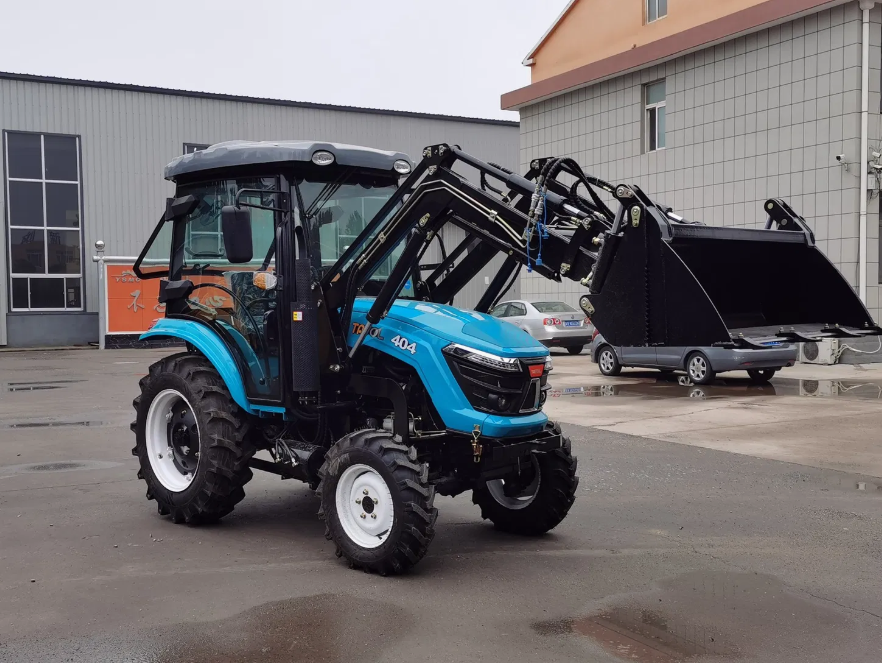

40HP Farm Tractor
Model: TL404
A farm tractor is a powerful vehicle designed for agricultural tasks, primarily used to tow or push farming equipment and machinery. Tractors are essential for various farming operations, such as plowing, tilling, planting, harvesting, and transporting materials.
Brand
HARMAC
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
