| LTB504 | ||
| Model | ||
| Tractor Parameters | Drive Type | 4WD |
| Overall Dimension(mm) | 3925×1728×2870 | |
| Min. operating weight(kg) | 2565 | |
| Rated traction force(kN) | 18.85 | |
| Wheel tread (front/rear) | 1265/1300 | |
| Wheel base(mm) | 2010 | |
| Min. ground clearance(mm) | 360 | |
| Min. Turning Radius(mm) | ≤4.3 | |
| Theoretical Speed(forward) | 2.32~30.96 | |
| Theoretical Speed(reverse) | 2.04~27.14 | |
| Engine | Engine model | 4D32ZT31/604 |
| Specification | Engine Model | Vertical, water cooled, four stroke, direct injection |
| Number of cylinders | 4 | |
| Engine Rated speed(r/min) | 2400 | |
| Engine Rated power (Kw) | 44.1 | |
| Drive System | Clutch | Single,dry type,dual-function |
| Gear box | 4×3×(1+1) | |
| Main drive | Spiral bevel gearing | |
| Differential | Closed, 4 planeatry bevel gears | |
| Differential lock | Mechanical lockingdifferential | |
| Final drive | Single planeatry gear | |
| Traveling Mechanism | Tyre(front) | 8.3-24 |
| Tyre(rear) | 11-32 | |
| Steering gear | Front wheel hydraulic steering | |
| Brake | Wet type, disc brake | |
| Working Device | PTO Speed (r/min) | 540/760 or 540/1000 |
| PTO Spline Size | φ38mm 8 splines-φ38mm | |
| Max. lifting force(kN ) | 9.92 | |
| 3-Point suspension | Category:II | |
Agricultrual Equipment
HARMAC

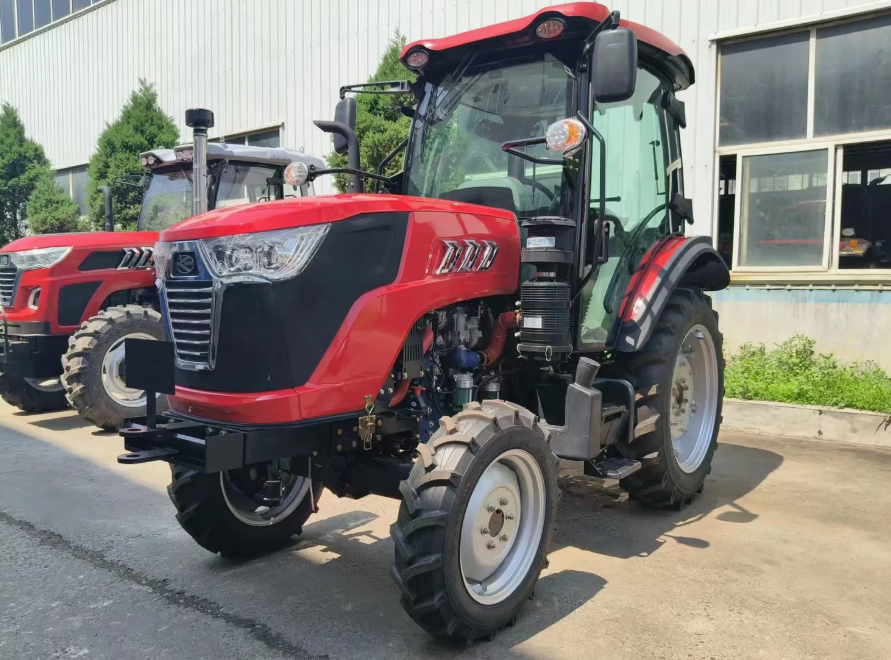

50HP Farm Tractor
Model: LTB504
A farm tractor is a powerful vehicle designed for agricultural tasks, primarily used to tow or push farming equipment and machinery. Tractors are essential for various farming operations, such as plowing, tilling, planting, harvesting, and transporting materials.
Brand
HARMAC
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
