| ENGINE | Emission Standard | Tier 3/ Stage III |
| Make /Model | Yuchai / YC4DK85 | |
| Power /Rotation speed | 62.5kw//2200rpm | |
| Type | Diesel with water-cooled, | |
| 4-stroke,4-cylinder | ||
| PERFORMANCE PARAMETER | Standard Bucket capacity | 0.3m³ |
| Swing speed | 11rpm | |
| Maximum Grade ability | 25° | |
| Travel speed | 28km/h | |
| Maximum Bucket digging force | 45KN | |
| Maximum Arm digging force | 36KN | |
| Hydraulic system pressure | 24Mpa | |
| Machine weight | 7500kg | |
| Fuel tank | 125L | |
| Hydraulic oil tank | 90L | |
| MACHINE SIZE | Overall dimension (L*W*Hmm) | 6300*2000*2850mm |
| Tread width | 8.25-16 | |
| Width of chassis | 2040mm | |
| Length to center of rollers | 2400mm | |
| Minimum Ground clearance | 260mm | |
| Swing radius at tail | 2365mm | |
| WORKING RANGE | Maximum Digging height | 6245mm |
| Maximum Dumping height | 4630mm | |
| Maximum Digging depth | 3820mm | |
| Maximum Vertical digging depth | 2700mm | |
| Maximum Digging radius | 6360mm | |
| Minimum swing radius | 2450mm | |
| Length of boom | 3350mm | |
| Length of arm | 1750mm |
Earthmoving Equipment
HARMAC

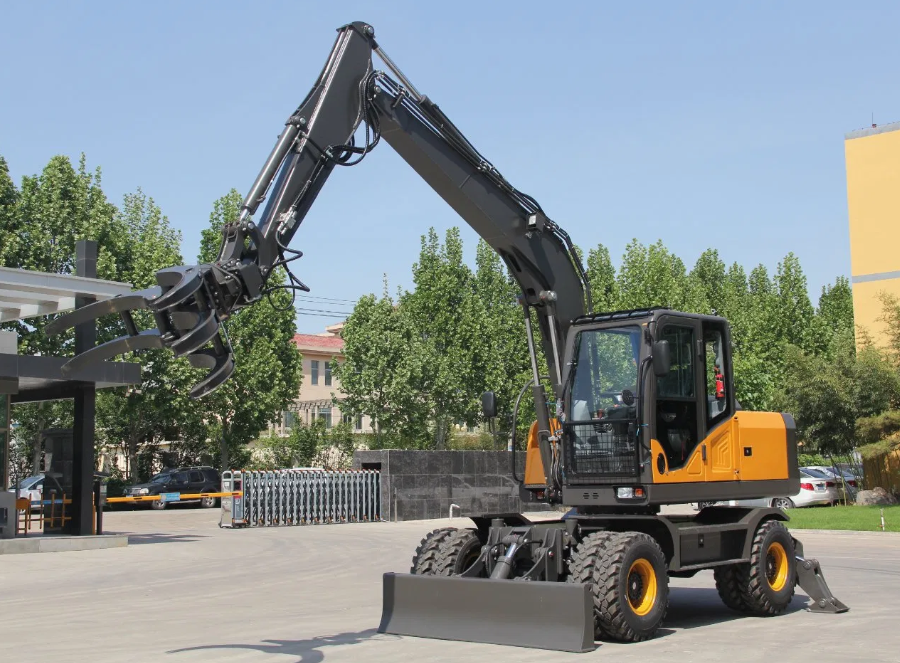

7.5 Ton Wheeled Excavator
Model: ZM75
An excavator is a versatile construction machine primarily used for digging, lifting, and moving materials like soil, rock, and debris. It consists of a base (tracked or wheeled), a hydraulic arm, and a bucket. Excavators are essential for construction, mining, and demolition work.
Brand
HARMAC
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
