| Engine Type | turbocharged; 4 stroke, direct injection, water cooled | Support roller quantities | 2×6 | ||||||||
| Carrier roller quantities | 2×1 | ||||||||||
| No. of cylinder | 4 | Travel shoes | 2X39 | ||||||||
| Bore and stroke | 98X110(mm) | Travel speed | 3.6/5.3(km/h) | ||||||||
| Displacement | 3.319L; | Drawbar pulling force | 63.5kN | ||||||||
| Power output | 54.3kw/2200rpm | Gradeability | 70%(350) | ||||||||
| Max. torque | 277~301N.m/1650±100 rpm | Track shoes thickness | 8.5mm | ||||||||
| Hydraulic System | Cab & Electrical System | ||||||||||
| Pump | KPM | Cab | Cab installed with silicon oil rubber, adjustable luxurious seat, cold and warm air-conditioning system plus flexible pilot control system | ||||||||
| Type | variable double-piston pump | ||||||||||
| Max. discharge flow | 2X79.2(L/min) | ||||||||||
| Max. discharge pressure | |||||||||||
| Boom, arm and bucket | 27.5 MPa | Voltage | 12V | ||||||||
| Travel circuit | 23.5 MPa | Batteries | 1X12V | ||||||||
| Swing circuit | 23.5 MPa | Battery capacity | 120Ah | ||||||||
| Control circuit | 3.9 MPa | Boom, Arm & Bucket | |||||||||
| Pilot control pump | Gear type | Boom cylinder | Φ110xΦ75xS1000-L1480 | ||||||||
| Main control valves | KYB, Japan | Arm cylinder | Φ100xΦ65xS870-L1335 | ||||||||
| Oil cooler | Air cooled type | Bucket cylinder | Φ55xΦ90xS710-L1115 | ||||||||
| Swing System | Refilling Capacity & lubrication | ||||||||||
| Swing motor | KYB | Fuel tank | 135 L | ||||||||
| Swing motor type | Axial-piston motor | Cooling system | 18 L | ||||||||
| Brake | Hydraulic oil released | Engine oil | 10.5 L | ||||||||
| Parking brake | Hydraulic disc brake | Hydraulic oil tank | 92 L Tank Oil Level | ||||||||
| Swing speed | 11 r/min | 128 L Hydraulic System | |||||||||
| Bucket | |||||||||||
| Type | Backhoe bucket | ||||||||||
| Bucket capacity | 0.34m3 (SAE) | ||||||||||
| Bucket Capacity scope | 0.105-0.51m3 | ||||||||||
| Number of bucket teeth | 5 | ||||||||||
| Bucket width | 824 mm | ||||||||||
Earthmoving Equipment
HARMAC

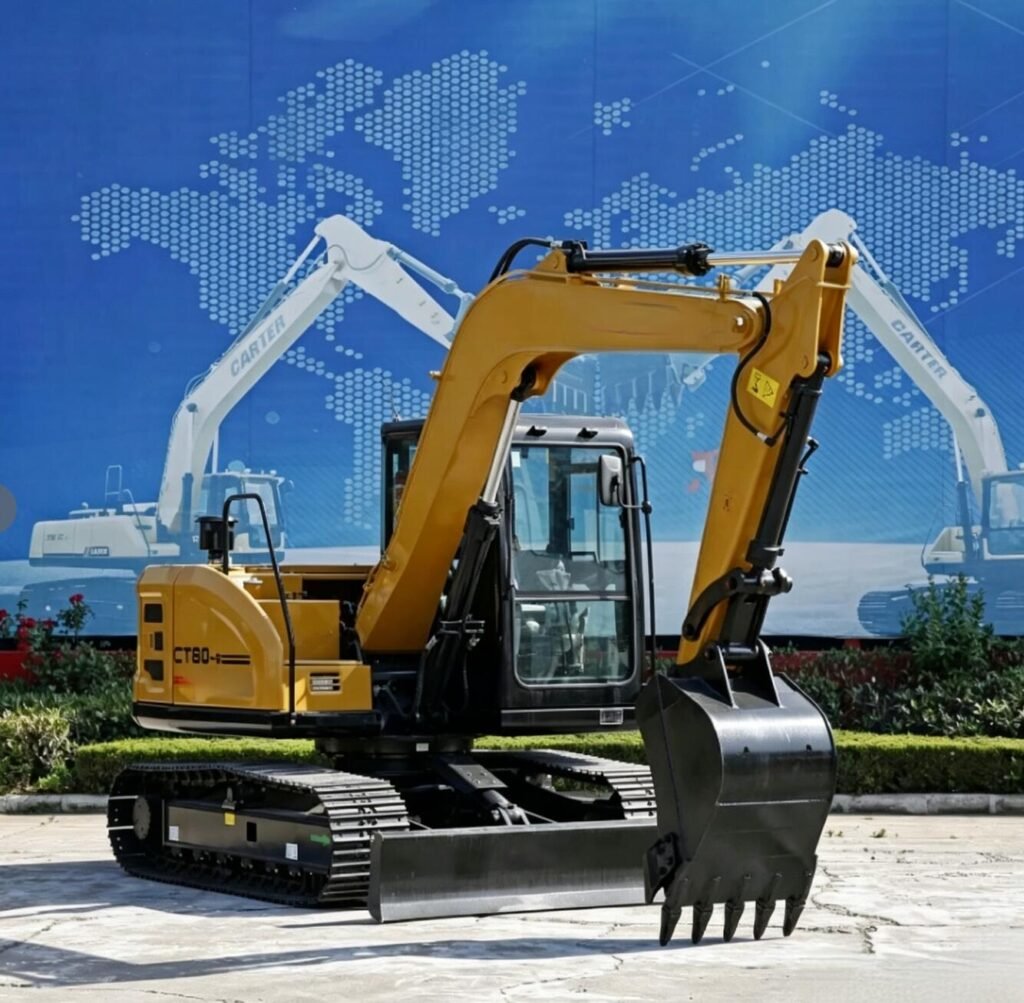

8 Ton Excavator
Model: CT80
An excavator is a versatile construction machine primarily used for digging, lifting, and moving materials like soil, rock, and debris. It consists of a base (tracked or wheeled), a hydraulic arm, and a bucket. Excavators are essential for construction, mining, and demolition work.
Brand
HARMAC
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
