4*2 HOWO 15 ton intelligent asphalt distributor truck,15m3 15000Liters asphalt emulsion distribute truck price
Vehicle model		Asphalt Distributor		Overall dimensions (mm)	833524803050
GVW (kg)		Approx16000		Fact loading capacity (L)	6000
Mass in working order (kg)		Approx10160		Max. Speed (km/h)	95
Chassis Description
Chassis Model			ZZ1167K501GE
Cab			Standard cabin with Left hand drive
Color			Optional
Allowable person in cab			2
Wheel base (mm)			4500
Front/Rear track base (mm)			1506/1466
Front/Rear overhang (mm)			1032/2068
Number of axles			2
Axle	Front axle		2320
	Rear axle		3480
Traction system			4×2
Operation control system			Power steering
Braking system			Full air
Electric system			24V
Transmission			Mechanical gear box 5 speeds + one rear
Spring plate			6/8+4
Tire specification			275/80R22.5,10.00R20,10.00-20
Tire quantity			6+1
Engine Description
Engine model			MC05.16-50
Emission standard			Euro 2
Exhaust/output			4580/118
Horse power			160
Up-parts Description
Asphalt tank Outline Dimension (mm)			4350/2410/1710
Asphalt tank Inner Dimension(mm)			3980/1950/1250
Insulating layer thickness (mm)			50
Asphalt tank Total Volume(L)			6000
Hydraulic pump			CBQ550-L
Proportional valve			Taiwan EFBG-03-160-HF
Asphalt pump			QGB680
Hydraulic motor for asphalt pump			05-110-BD31
Heating System			Italian burner Riello
Heat-transfer oil pump			25-25-160
Control System			SIEMENS CLW-39-01
Generator			5.5KW gasoline engine generator
Number of nozzle			30-39
Spray medium			Hot asphalt/ Hot modified asphalt/ Cutback asphalt/ Emulsified asphalt
Spray width(m)			4.5-6
Spray amount(L/m2)			0.2-2
Working Condition:			1,Altitude: 0-4500m
			2,Temperature: -350C~+450C
			3,Relative humidity: 80%
			4,Wind force: ≤8degree

Asphalt Distributor Truck HOWO

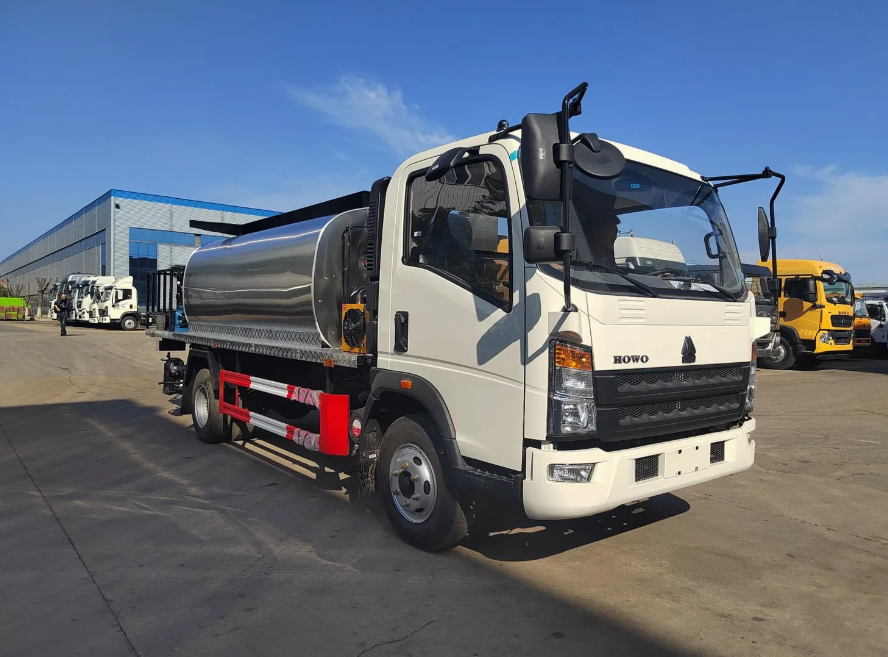

Brand New Asphalt Sprayer HOWO Asphalt Distributor Truck Hot Sale

Model: ZZ1164K4715C1

The Asphalt Distributor Truck is engineered for professional asphalt spraying applications. Equipped with an intelligent control system and reliable heating technology, it provides uniform spraying performance for highways, urban roads, airport runways, and pavement maintenance.

Brand

HOWO

Warranty

3 Years

ISO CE Certified

Worldwide Shipping

Strict QC
