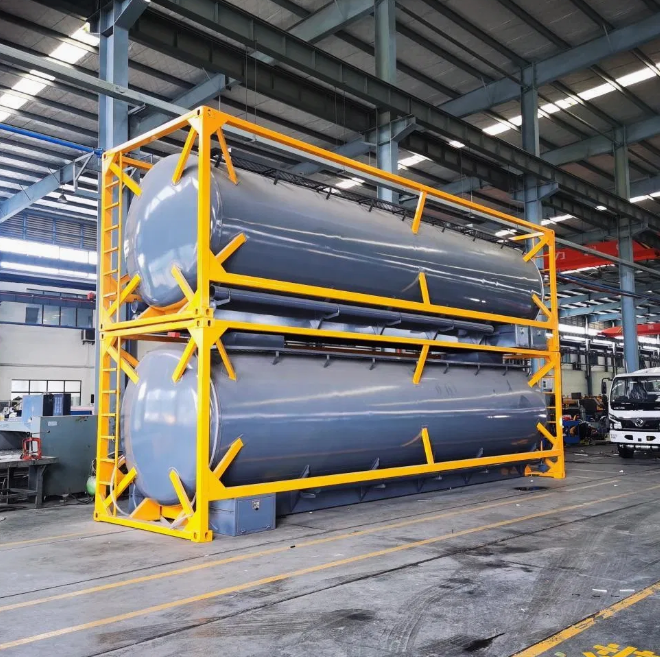

Carbon steel 20-foot 40-foot Liquefied Petroleum Gas/Liquefied Chlorine Gas ISO Containerized Box

Guidelines for tank container			T75
Container Type of this tank container			1AA
Rated weight for this tank container			32723kgs
Maximum Allowed Loading Weight for this tank container			14700kgs
Tare weight for this tank container			18023kgs
Allowed stacking weight for this tank container			192000kgs
Manufacturing license level of this tank container			Inside tank			C3
			outside tank
Max. Working Pressure(Mpa.) for this tank container			Inside tank(MPa)			0.7
			outside tank(MPa)			-0.1(Vacuum)
Min. Working Tempretrues for this tank container			Inside tank			-162 °C
			outside tank			-20°C
Design Pressure(Mpa.) for this tank container			Inside tank			0.8
			outside tank			-0.5
Design Tempretrues for this tank container			Inside tank			-196 °C
			outside tank			50 °C
The Main material for this tank container			Cover		inside tank	S30408
					outside tank	Q345R
			Shell		inside tank	S30408
					outside tank	Q345R
Overall Size(Frame)/LWH/mm for this tank container			1219224382591
Media for this tank container			Inside tank			LNG
Media Characteristics for this tank container			Inside tank			explosive
Painting for this tank container			Frame			30µm +40µm +50µm
			Shell			30µm +40µm +50µm
Total Volume(L) for this tank container			40440
Effective volume(L) for this tank container			36400
Rated filling rate for this tank container			90%
Corrosion allowance for this tank container			Inside tank			0mm
			outside tank			1mm
Air tightness test pressure(Mpa) for this tank container			Inside tank			0.8mm
			outside tank			0.2mm
Air pressure test pressure for this tank container			Inside tank(MPa)			0.92
Welding joint coefficient for this tank container			Inside tank			1
			outside tank			0.85
Static evaporation rate for this tank container			Inside tank			<=0.18
Material density(kg/m3) for this tank container			Inside tank			426
Natural boost rate for this tank container			Inside tank			<=13
Main hazard category for this tank container			2.1
Design service life for this tank container			15 years
Mode of transportation for this tank container			Road,Sea or Railway
Adiabatic form for this tank container			High vacuum multilayer insulation
Emergency cut-off valve for this tank container		Type			Gas phase	KDJ661F-16P
					liquid phase	KDJ661F-16P
		Nominal pressure			Gas phase(Mpa)	1.6
					liquid phase(Mpa)	1.6
		Nominal Diameter			Gas phase	DN50/DN32
					liquid phase	DN50
		Operation way			Gas phase	Pneumatic motion control
					liquid phase	Pneumatic motion control
		Fusible temperature for the Fusible alloy of the fusible plug(°C)				70+/-5
Safety valve for this tank container		Type			ZA25-5B
		Mode			Low temperature modular safety valve
Level gauge for this tank container		Type				ZK-1.5-6-1
		Mould				CYJ-1 Double liquid column pressure difference level gauge
		Nominal pressure(Mpa)				1.6
		Nominal Diameter				DN6
		Measuring range(Kpa)				0~15
		Precision				>=2.5
Loading and unloading device for this tank container		Gas phase joint			Type	Flange connection
					Nominal Diameter	DN50
		liquid phase joint			Type	Flange connection
					Nominal Diameter	DN50
Pressure gauge for this tank container		Type				YN-100
		Measuring range(Mpa)				0~1.6
		Precision				1.6 Class
Shell blasting device for this tank container		Burst pressure(Mpa)				<=0.1
		Nominal Diameter				DN80
		Type				YEJ80-0.1-50
Orifice table
symbol	Nominal Size	Nominal Pressure		Tube Size	Purpose and Name	Connection standard and Type
CZ1	50	40		Ø57*3.5	liquid phase entrance	HG/T20592-2009
CZ2	50	40		Ø57*3.5	Gas phase entrance	HG/T20592-2009
CZ3	32	40		Ø38*3	Supercharger liquid phase entrance	HG/T20592-2009
j	80	/		/	Shell explosion-proof port	/

ISO Propane Tank HARMAC

Carbon steel 20-foot 40-foot Liquefied Petroleum Gas/Liquefied Chlorine Gas ISO Containerized Box

Model: T75

Our ISO LPG tank containers are designed for the safe and efficient transportation and storage of liquefied petroleum gas (LPG). Manufactured to international ISO standards, they feature high-strength construction, excellent corrosion resistance, and reliable performance for global intermodal logistics.

Brand

HARMAC

Warranty

3 Years

ISO CE Certified

Worldwide Shipping

Strict QC
