| Driving license: | A1,A2,B2 | Announcement Model: | DYQ3253D6CB |
| Drive type: | 6X2 | Wheelbase: | 1800+3200mm |
| Motor: | Yuchai YCS06245-60 | Gearbox: | Fast 10JS90A-B |
| Rear axle ratio: | 5.833 | Body length: | 8.35 meters |
| Body width: | 2.55 meters | Vehicle Height: | 3.45 meters |
| Front track: | 1775/1775mm | Rear track: | 1700mm |
| Vehicle weight: | 9 tons | Rated load: | 15.87 tons |
| Total mass: | 25 tons | Tonnage Class: | Heavy trucks |
| Approach Angle: | 15 degrees | Departure Corner: | 21 degrees |
| Origin: | Chengdu, Sichuan | Market Segments: | Urban construction muck, mining engineering |
| Fuel Type: | diesel fuel | ||
| Engine parameters | |||
| Engine Model: | Yuchai YCS06245-60 | Engine Brand: | Yuchai |
| Number of cylinders: | 6 cylinders | Fuel Type: | diesel fuel |
| Displacement: | 6.23L | Emission Standards: | National VI |
| Maximum horsepower: | 245 hp | Maximum output power: | 180kW |
| Maximum torque: | 850N·m | Maximum Torque Speed: | 1200-1700rpm |
| Rated speed: | 2300rpm | Engine type: | High Voltage Common Rail + EGR + DOC + DPF + SCR + ASC |
| Container parameters | |||
| Cargo length: | 5.5 meters | Cargo box width: | 2.3 meters |
| Cargo box height: | 1.5 meters | Cargo box form: | Dump |
| Cab parameters | |||
| Cab: | Row half low top | ||
| Transmission parameters | |||
| Transmission model: | Fast 10JS90A-B | Transmission brand: | Fast Priest |
| Forward gear: | 10 gears | Number of reverses: | 2 pcs |
| fuel tank | |||
| Fuel Tank Material: | Aluminum alloy | Fuel Tank Capacity: | 250L |
| Chassis parameters | |||
| Frame Size: | (860-800)×280×(8+5)mm | Front axle description: | Twin 153 standard shortened axle/5t |
| Permissible load on the front axle: | 6750/6750kg | Rear axle description: | 457 shortened axle / 13t |
| Permissible load on rear axle: | 11500kg | Ratio: | 5.833 |
| Suspension Type (Front/Rear): | (14×90/14×90/18×90+16×90) | Number of springs: | 9/9/10+8 |
| tyre | |||
| Tire Specifications: | 10.00R20-18 | Number of tires: | 8 pcs |
Dump Truck
DAYUN

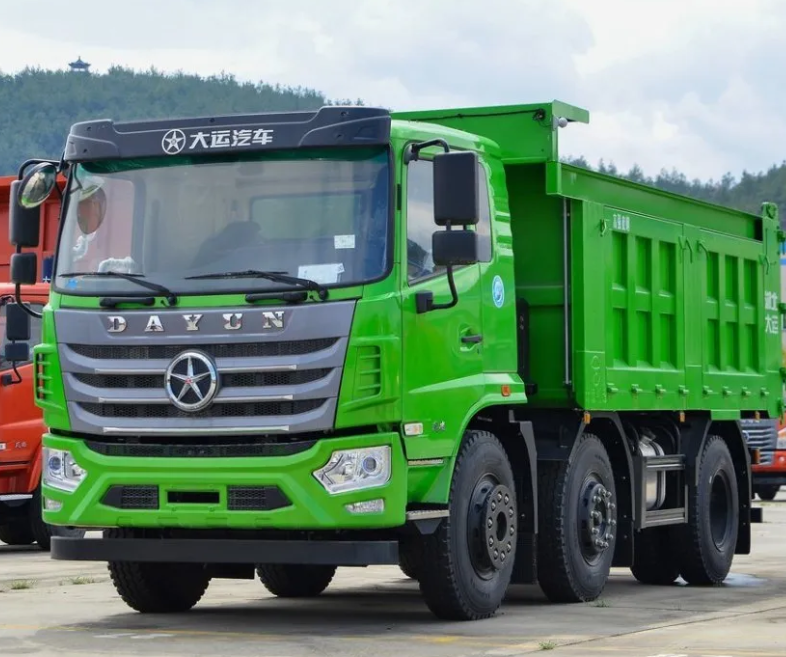

DAYUN 6X2 Dump Truck
Model: 245
Dump Truck is a heavy-duty vehicle used to transport and unload bulk materials such as sand, gravel, soil, and ore. It is equipped with a hydraulic system that lifts the truck bed to discharge materials quickly and efficiently. Dump trucks are widely used in mining, construction, and road projects due to their high load capacity and reliable performance.
Brand
DAYUN
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
