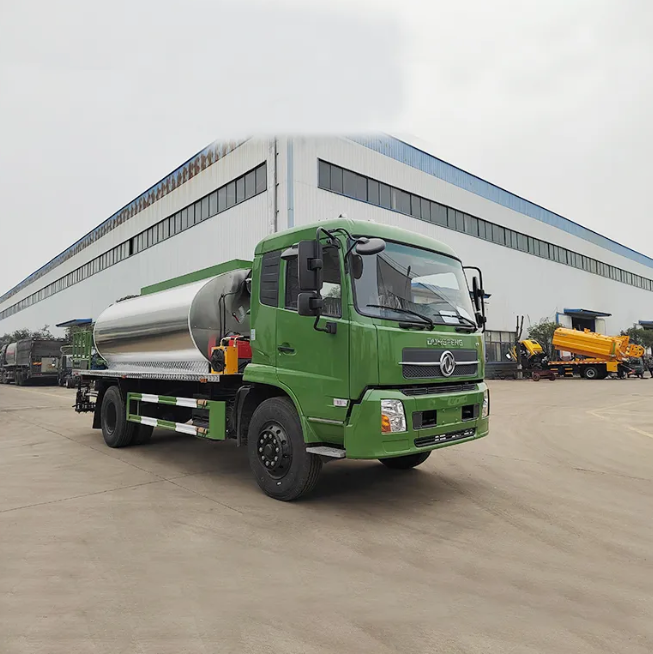

Dongfeng 12000 Liters Asphalt Distributor Truck Fully Automatic Computer Control

name	Model, Specifications	Belonging System	Remark
car chassis	DFH1180EX8	chassis
car chassis	DFH1180EX8			engine	B6.2NS6B210	6-cylinder 210 horsepower
Asphalt tank capacity	12 cubic meters		tank	High-quality carbon steel
Insulation layer thickness	40 mm	Rock wool insulation
Stainless steel outer casing	1mm	1 thick stainless steel plate
power take-off	Specialized for sprayer trucks	Work Motivation
power take-off	Specialized for sprayer trucks	Work Motivation		hydraulic pump	CBQ550-L	Hydraulic system	Tianjin
proportional valve	EFBG-03-160-HF	Taiwan
Asphalt pump motor	05-130 – BD31	Tianjin/ Ningbo
Asphalt pump	QGB 950	Asphalt spraying system	Shanggui, 950 L/min
Number of nozzles	36		The control method is: 1 control 1
hand spray gun	5-meter hose + handheld spray bar		Spray on corners
burner	G20 (200,000 kcal/hour)	Heating system	Rialto, Italy
Thermal oil pump	RY 25-25-160		Hebei
Thermal oil pump motor	380V-2.2KW-2 poles		Lu’an, Anhui
Control system method	Cab touchscreen computer control + rear work platform control (backup)	control system	The control system adopts Siemens modular design, resulting in faster and smoother operation and a lower failure rate.
speed sensor	Ni5-G12		Turck
Temperature controller	WZP-230		Shanghai
dynamo	7 KW gasoline generator	Power System	Domestic

Asphalt Distributor Truck DONGFENG

Dongfeng 12000 Liters Asphalt Distributor Truck Fully Automatic Computer Control

Model: EQ5140GLQL9BDFAC

The Asphalt Distributor Truck is engineered for professional asphalt spraying applications. Equipped with an intelligent control system and reliable heating technology, it provides uniform spraying performance for highways, urban roads, airport runways, and pavement maintenance.

Brand

DONGFENG

Warranty

3 Years
