| Driving license: | A1,A2,B2 | Announcement Model: | BJ3184DKPFA-01 |
| Drive type: | 4X2 | Wheelbase: | 3400mm |
| Motor: | Weichai WP4.1NQ190E61 | Gearbox: | Fast 8JS85F |
| Rear axle ratio: | 5.571 | Body length: | 6.285 meters |
| Body width: | 2.41 meters | Vehicle Height: | 2.75 meters |
| Front track: | 1740mm | Rear track: | 1755mm |
| Vehicle weight: | 7.81 tons | Rated load: | 9.995 tons |
| Total mass: | 18 tons | Tonnage Class: | Medium card |
| Approach Angle: | 20 degrees | Departure Corner: | 18 degrees |
| Origin: | Jining | Remark: | Standard: power steering, clutch assist, electronically controlled flame-out, MP3; Optional: Multimedia. |
| Fuel Type: | diesel fuel | ||
| Engine parameters | |||
| Engine Model: | Weichai WP4.1NQ190E61 | Engine Brand: | Weichai |
| Number of cylinders: | 4 cylinders | Fuel Type: | diesel fuel |
| Displacement: | 4.088L | Emission Standards: | National VI |
| Maximum horsepower: | 190 hp | Maximum output power: | 140kW |
| Maximum torque: | 680N·m | Maximum Torque Speed: | 1300-1900rpm |
| Rated speed: | 2600rpm | Engine type: | High pressure common rail, EGR+DOC+DPF+SCR |
| Container parameters | |||
| Cargo length: | 4 meters | Cargo box width: | 2.2 meters |
| Cargo box height: | 0.8 meters | Cargo box form: | Dump |
| Bodywork parameters | |||
| Lifting Form: | Engineering top | ||
| Cab parameters | |||
| Cab: | Row in half | Cab width: | 2060mm |
| Transmission parameters | |||
| Transmission model: | Fast 8JS85F | Transmission brand: | Fast Priest |
| Forward gear: | 8 gears | Number of reverses: | 2 pcs |
| Chassis parameters | |||
| Frame Size: | 250×65×7+4-800mm | Permissible load on the front axle: | 6500kg |
| Rear axle description: | 153z | Permissible load on rear axle: | 11500kg |
| Ratio: | 5.571 | Number of springs: | 10/12+9 |
| tyre | |||
| Tire Specifications: | 10.00R20 | Number of tires: | 6 pcs |
Dump Truck
Ferovo

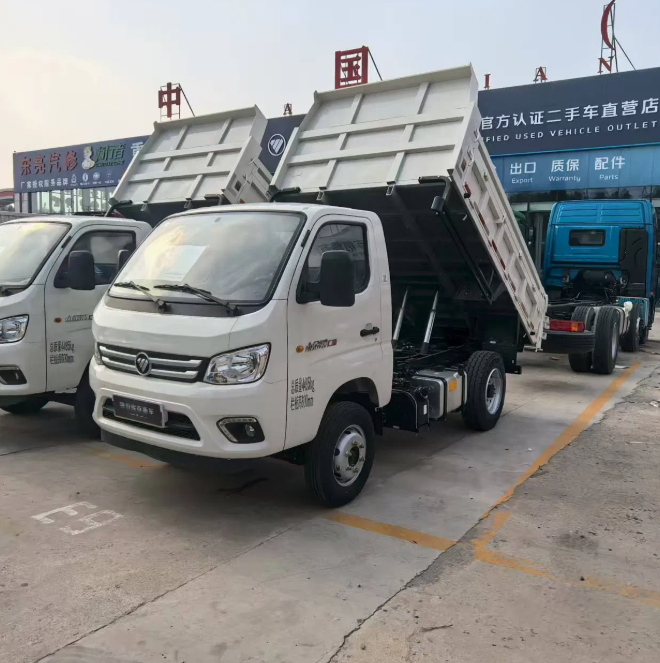

Ferovo 4X2 Dump Truck
Model: 190
Dump Truck is a heavy-duty vehicle used to transport and unload bulk materials such as sand, gravel, soil, and ore. It is equipped with a hydraulic system that lifts the truck bed to discharge materials quickly and efficiently. Dump trucks are widely used in mining, construction, and road projects due to their high load capacity and reliable performance.
