| Condition | 4X2, New Condition, LHD | ||
| Chassis | Country of Original | China | |
| Brand | Foton | ||
| Overall Dimension(mm) | 5990 x 2500 x 3400 mm | ||
| Wheelbase(mm) | 3360mm | ||
| Curb weight(kg) | 7660kg | ||
| Loading Volume | 5 CBM, 5000liters | ||
| Approach/departure angle(°) | 27/20 degree | ||
| Front /rear overhang(mm) | 1250/2505 mm | ||
| Wheel track(front /rear)(mm) | 1800/1860 mm | ||
| Max driving speed(km/h) | 95 km/h | ||
| Steering gear | Power steering | ||
| Tire | Quantity | 7pcs with one spare tire | |
| Specification | 7.50R16 | ||
| Transmission | Manual type;5 Forward Gear, 1 Backward Gear | ||
| Cab | A/C installed, one row and a half, 3 seats | ||
| Engine | Brand | YC4E140-33 | |
| Fuel type | Diesel | ||
| Displacement(ml) | 4257 | ||
| Power(kW) | 103KW | ||
| Horsepower(hp) | 140 HP | ||
| Maximum torque | 500N.M | ||
| Intake form | Four-cylinder in line, water cooling, four-stroke, pressurized medium-cooling, direct injection | ||
| Emission standard | Euro3 | ||
| Sewage Suction System | |||
| Sewage Tanker | Capacity | 5 cubic meters, 5000liters | |
| Material | Q235 high tension steel, 6mm Tank body and End Plate, | ||
| Dumping System | Middle Tipper | Hydraulic Controlled Rear Door and Middle Lifting. | |
| Rear Door | Hydraulic controlled with sewage drain pipe | ||
| Pump | High Efficiency Wei long 68/400 Vacuum Suction Pump made in China. | ||
| Pump System | 108mmΦ suction pipe, suction time ≤5min, effective suction range≥8,max vacuum degree ≤15 Kpa, dump angle ≥45 | ||
| Vacuum Pressure | -0.092Mpa | ||
| Sewage Pipe | 8 meters Rubber Pipe (one unit pipe) | ||
| Other Parts | Water-gas separator, Oil-gas separator, Four-way valve, Safety valve, Anti overflow valve, Anti overflow warning device | ||
Septic Truck
FOTON

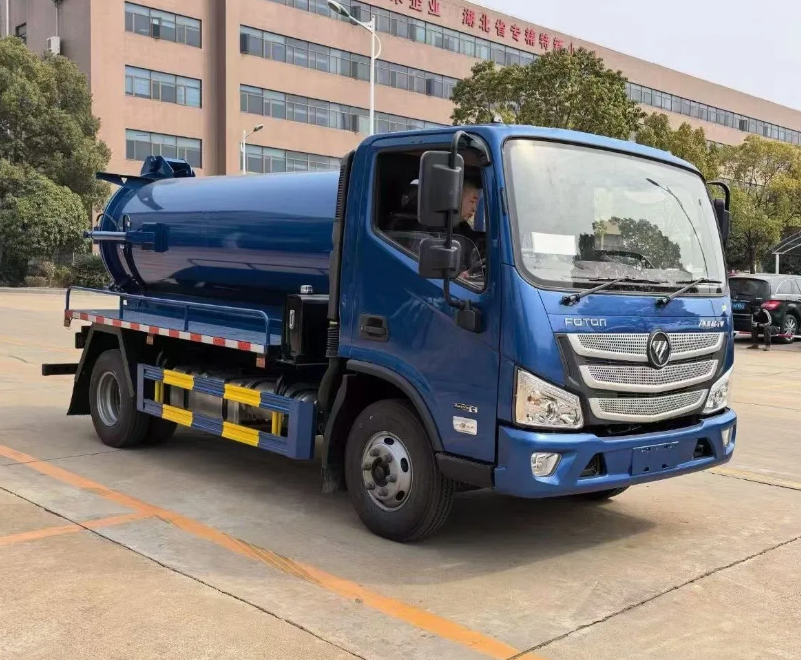

Foton Right Hand Drive 5m3 Vacuum Sewage Pump Truck Septic Fecal Suction Truck
Model: FT5132R
HARMAC supplies high-quality septic trucks for efficient sewage collection, transportation, and disposal. Featuring powerful vacuum pumps, corrosion-resistant tanks, and reliable chassis from ISUZU, FAW, Dongfeng, SINOTRUK, and more. OEM and customized solutions are available for global markets.
Brand
FOTON
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
