| Gross Vehicle Weight (kg) | 20,250 |
| Curb Weight (kg) | 8,250 |
| Overall Dimensions (mm) | 7780 × 2500 × 3400 |
| Wheelbase (mm) | 4500 |
| Axle Load (kg) | 5000 / 10000 |
| Maximum Speed (km/h) | 90 |
| Chassis Details | |
| Chassis Brand | HOWO,JMC,DONGFENG,JAC,1suzu,FAW,FOTON,SHACMAN |
| Drive Type | 4×2 |
| Emission Standard | Euro 3 |
| Displacement / Power | 5900 ml / 132 kW |
| Horsepower | 150-250 HP |
| Fuel Type | Diesel |
| Tire Size | 10.00R20 |
| Sewage Tank System | |
| Capacity | 10 m³ (10000 liters) |
| Tank Material | Q235 high-strength steel, 6mm thick body and end plates |
| Dumping Mechanism | Middle tipper with hydraulic lifting |
| Rear Door | Hydraulically operated with sewage discharge pipe |
| Vacuum Pump | High-efficiency Weilong 68/400 model (China make) |
| Pump System | 108mm suction pipe; ≤5 min suction time; ≥8m effective range; ≤15 kPa vacuum; ≥45° dump angle |
| Vacuum Pressure | -0.092 MPa |
| Discharge Hose | 8m rubber hose (single unit) |
Septic Truck
HOWO

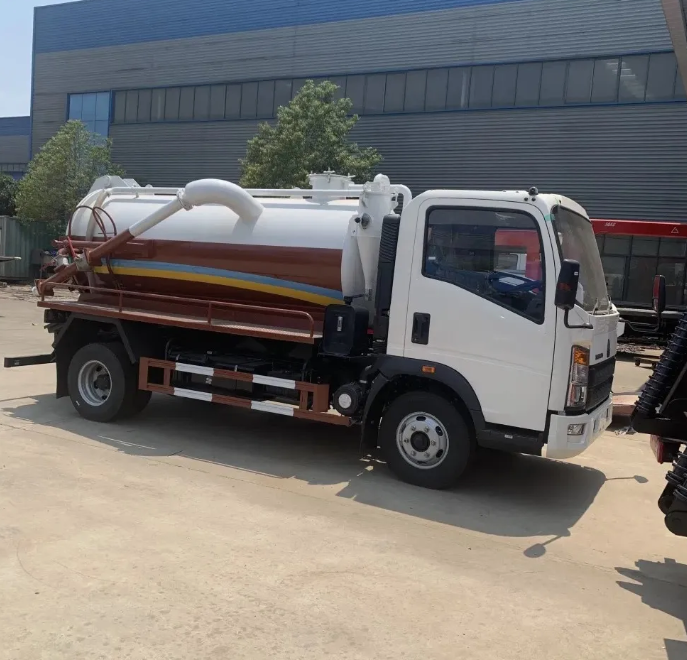

HOWO 4X2 Small 4000L Customized High Power Vacuum Sewage Suction Septic Truck
Model: XH3820DTH8ZDG
HARMAC supplies high-quality septic trucks for efficient sewage collection, transportation, and disposal. Featuring powerful vacuum pumps, corrosion-resistant tanks, and reliable chassis from ISUZU, FAW, Dongfeng, SINOTRUK, and more. OEM and customized solutions are available for global markets.
Brand
HOWO
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
