| Vehicle series | HOWO-7 8×4 Tipper / DUMP TRUCK | |
| Cab | HOWO long cab, with one sleeper, with air conditioner | |
| Engine | Model | Euro 3 |
| Power(Ps/rpm) | 371hp / 375HP / 420HP ,430HP .460HP | |
| Maximum torque(Nm/rpm) | 1490/1200-1500;1590/1200-1500 | |
| Displacement(L) | 9.726 | |
| Transmission | SINOTRUK HW series 10 gears Transmission,Transmission with main and auxiliary transmission structure, , main transmission with double counter shaft ,auxiliary transmission with planetary reduction. with PTOWD 615.47 standard HW19710 | |
| Clutch | 430 diaphragm spring Clutch,Hydraulic control air assisted. | |
| Front axle | HF9 drum-type, rated load of 9t | |
| Rear axle | HC16 double reduction (central reduction+wheel reduction),speed ratio:5.73, 4.8 | |
| Steering system | ZF8098 steering gear, ZF steering oil pump, system pressure 18MPa | |
| Suspension | Steer Axle | front and rear leaf spring suspension, front suspension with shock absorber,transverse stabilizer |
| Drive Axle | front and rear leaf spring suspension,rear suspension is disconnected type with transverse stabilizer. | |
| Braking system | Service brake | dual-circuit air pressure brake |
| Parking Brake | spring storage energy without air | |
| Auxiliary brake | Engine exhaust braking. standard Engine EVB,ABS, optional auto clearance adjusting arm. | |
| Electric system | Voltage | 24V |
| Generator | 2240W | |
| Batteries | 12V/165Ah,2 pieces | |
| Starter Power | 24V,7.5kW | |
| Wheels & Tyres | Tyres | 12.00R20 |
| Optional | 315/65R22.5 | |
| Fuel Tank | Capacity | 300 Liter |
| Weights (kg) | Curb weight(vehicle/chassis) | 15000/9710kg |
| Gross Vehicle Weight | 45000kg | |
| Rated load | 30000-40000kg | |
| Vehicle Dimensions (mm) | Overall length x Overall width x Overall height | 10700×2500×3450mm |
| Dump box | 7600×2500×1500mm | |
| Dump box thickness | Bottom 8mm,side wall 6mm | |
| Performance | Maximum speed(km/h) | 85 |
| Maximum gradeability(%) | 20 | |
| Minimum turning diameter(m) | 15/16/17 | |
Dump Truck
HOWO

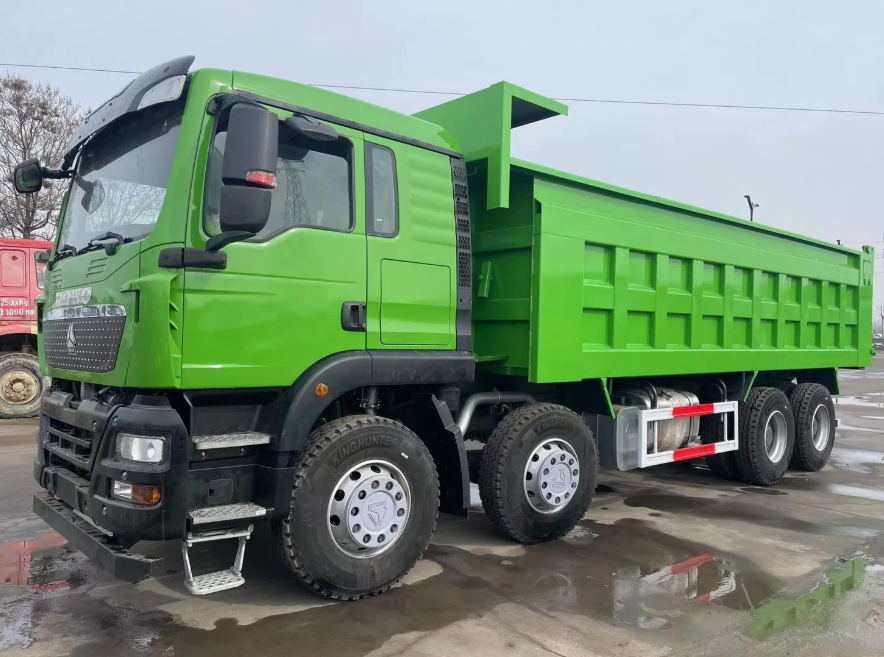

HOWO 8X4 Dump Truck
Model: 371
Dump Truck is a heavy-duty vehicle used to transport and unload bulk materials such as sand, gravel, soil, and ore. It is equipped with a hydraulic system that lifts the truck bed to discharge materials quickly and efficiently. Dump trucks are widely used in mining, construction, and road projects due to their high load capacity and reliable performance.
Brand
HOWO
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
