Model			Max feed size (mm)	capacity(th)	(kw)
	specifications	Feed port size				Weight	Overall dimension
	(mm)	(mm)				(t)	(mm)
PF-1007	Φ1000×700	400×730	300	30-70	4P 37-45	12	2330×1660×2300
PF-1010	Φ1000×1050	400×1080	350	50-90	4P 45-55	15	2370×1700×2390
PF-1210	Φ1250×1050	400×1080	35C	70-130	6P 110	17.7	2680×2160×2800
PF-1212	Φ1250×1400	400×1430	35	30-180	6P 132	22.4	2650×2460×2800
PF-1315	Φ1320×1500	860×1520	500	00-280	6P 200	27	3180×2720×3120
PF-1320	φ1300×2000	993×2000	500	40-380	6P 250	34	3220×3100×3120
PF-1520	Φ1500×2000	830×2040	700	200-550	4P 315-400	50.6	3959×3564×3330
PF-1820	φ1800×2000	1260×2040	800	400-800	4P 630-710	83.21	4400×3866×4009

Impact Crusher HARMAC

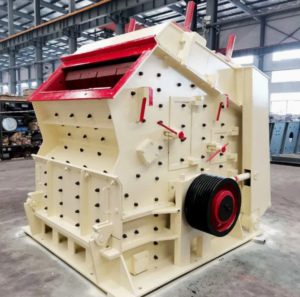

Impact Crusher

Model: PF-1007

An impact crusher is a type of crushing machine used in the mining, construction, and recycling industries to break down materials like rocks, stones, and ores into smaller, more manageable pieces. It operates by utilizing impact force to crush the material, as opposed to traditional crushers that use compression or friction.

Brand

HARMAC

Warranty

3 Years
