| MODEL | YCR50 |
| Max. pile Diameter(mm) | 1200 |
| Max. pile Depth(m) | 23 |
| Max.output torque(kN m) | 50 |
| Speed of rotationrpm | 6-35 |
| Engine model | CUM MINS B3.9 |
| Rated power (kw/rpm) | 86/2200 |
| Working pressure(Mpa) | 34 |
| Diameter of the steel wire rope(mm) | 16 |
| The length of crawler (mm) | 4310 |
| Track shoe width(mm) | 600 |
| Operating weight (t) | 18.2 |
| Transport Dimensions (LxWxH/mm) | 9950x2600x3480 |
Drilling Equipment
Yuchai

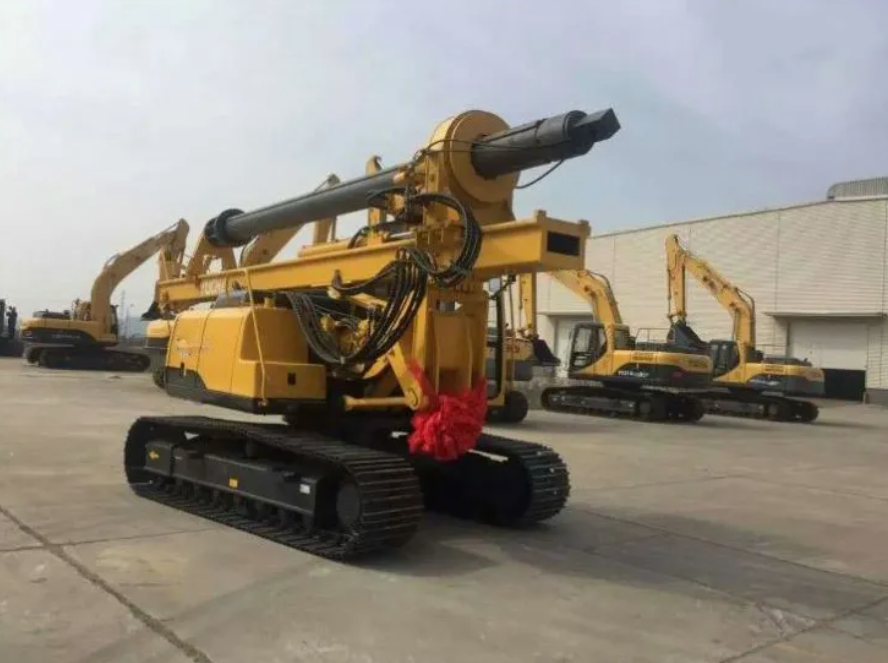

Rotary Drilling Rig Machine YCR50
Model: YCR50
Rotary Drilling Rig is a foundation construction machine used for drilling deep holes for pile foundations. It is widely applied in building, bridge, and infrastructure projects, offering high efficiency, stability, and precise drilling performance.
Brand
Yuchai
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
