Model	XSD-2610	XSD-2816	XSD-3016	XSD-3620
wheel size (mm)	2600×1000	2800×1600	3000×1600	3600×2000
Wheel speed(r/min)	1.178	1.177	1.179	1.15
Capacity(t/h)	20-50	30-60	50-120	80-160
Max.feeding size(mm)	≤10	≤10	≤10	≤10
power(kw)	7.5	7.5-11	11\15	20-30
model of gear box	ZQ400-50-I-Z	ZQ650-50-I-Z	ZQ650-50-I-Z	ZQ650-50-I-Z
Dimension(mm)	3600×2116×2690	3964×3015×2980	3964×3015×3080	4624×3443×3680

Mining Equipment HARMAC

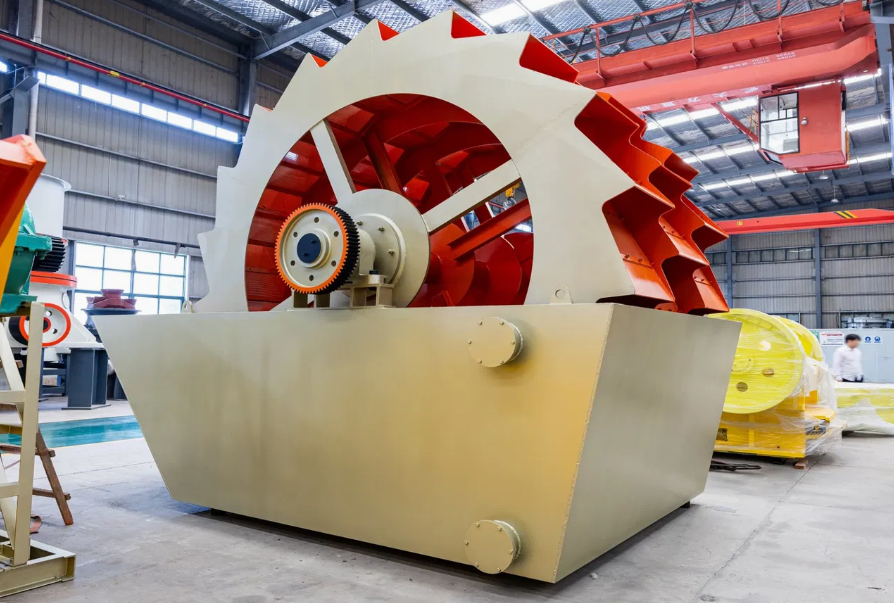

Sand Washing Machine

Model: XSD-2816

Sand Washing Machine is used to remove impurities such as dust, clay, and silt from sand to improve its quality. It works by washing and separating materials with water flow and mechanical agitation. It features high cleaning efficiency, stable operation, and low maintenance cost, widely used in construction and sand production industries.

Brand

HARMAC

Warranty

3 Years

ISO CE Certified

Worldwide Shipping

Strict QC
