| Category | Item | Unit | XS52 |
| Overall parameter | Outline dimension | mm | 12700*2540*4000 |
| Overall weight | kg | 35000 | |
| Chassis | Model | ZZ5357TXFV464ME1(R) | |
| Manufacturer | Top Brand | ||
| Max.speed | km/h | 85 | |
| Max.grade-ability | % | 50 | |
| Wheelbase | mm | 4800+1400 | |
| Tire | 385/65 R22.5,315/80 R22.5 | ||
| Engine | Model | MC11.44-50 | |
| Max.power | kw | 328 | |
| Max.torque | N ·m/(r/min) | 2100/1000-1400 | |
| Displacement | L | 10.518 | |
| Emission standard | Eruo | ||
| Pumping system | Theoretical output (L/H) | m³/h | 170 |
| Concrete pumping pressure(L/H) | MPa | 8 | |
| Theoretical pumping times(L/H) | Time/min | 23-26 | |
| Delivery cylinder diameter ×stroke | mm | 260*2000 | |
| Max.diameter of pumping concrete aggregate | mm | 40 | |
| Filling height | mm | 1580 | |
| Concrete slump range | cm | 8~23 | |
| Placing boom | Reach height | m | 49.1 |
| Reach depth | m | 34.4 | |
| Slewing radius | m | 44.2 | |
| Slewing angle | o | ±270 | |
| Unfolding angle of the 1st section | o | 90 | |
| Unfolding angle of the 2nd section | o | 180 | |
| Unfolding angle of the 3rd section | o | 180 | |
| Unfolding angle of the 4/5th section | o | 240/210 | |
| Stabilizer span | Longitudinal span of stabilizer | mm | 9400 |
| Transverse span of front stabilizer | mm | 9300 | |
| Transverse span of rear stabilizer | mm | 9600 |
Concrete Pump Truck
XCMG

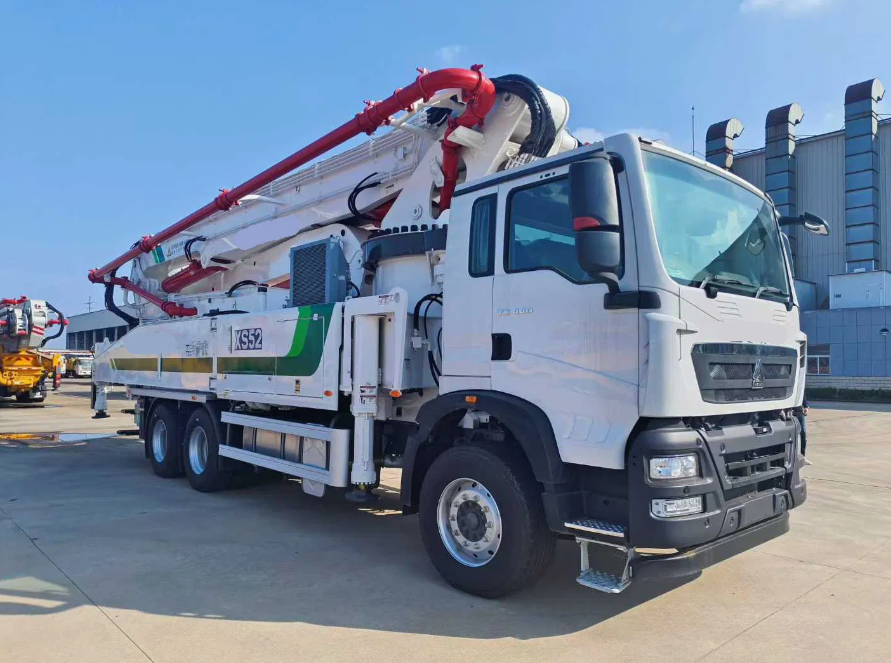

XCMG Concrete Pump Truck
Model: XS52
A concrete pump truck is a specialized construction vehicle used to transport and pump liquid concrete to construction sites through a hydraulic pumping system. It is widely used for high-rise buildings, bridges, tunnels, and large construction projects where precise and efficient concrete placement is required.
Brand
XCMG
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
