| Item | Unit | Parameter |
| Model | – | XLS1203 |
| Maximum spraying width | m | 6 |
| Asphalt spraying amount | kg/ | 0.2-3.0 |
| Deviation of spray volume | kg/ | ±0.07 |
| Volume/density of asphalt tank | m³/(t/m³) | 12 |
| Working speed | km/h | 3\15 |
| Engine model | – | D10.38-50 |
| Engine power | kW/(r/min) | 276/2000 |
| Driving mode | – | 6×4 |
| Maximum driving speed | km/h | 84 |
| Fuel tank capacity | L | 400 |
| Curb weight | kg | 17700 |
| Total mass | kg | 25000 |
| Output torque | N.m | 650 |
| Approach angle/Departure angle | ° | 11\16 |
| Overall dimension | mm | 10330×2500×3220 |
Asphalt Distributor Truck
HOWO

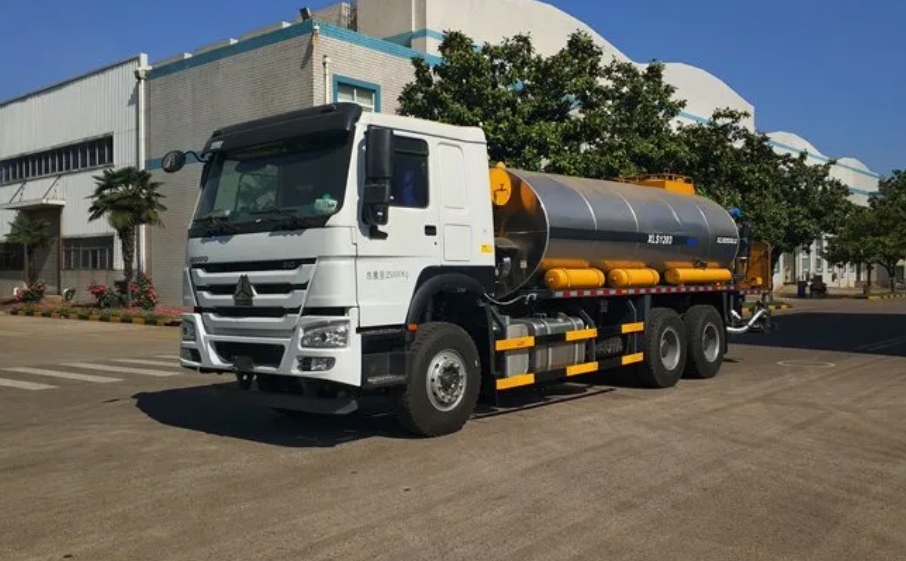

12CBM Trailer Asphalt Distributor Truck Xls1203 Bitumen Sprayer Truck for Road Construction
Model: XLS1203
The Asphalt Distributor Truck is engineered for professional asphalt spraying applications. Equipped with an intelligent control system and reliable heating technology, it provides uniform spraying performance for highways, urban roads, airport runways, and pavement maintenance.
Brand
HOWO
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
