| 1 | Model | PY165C | PY180C | PY220C | ||
| 2 | Power type | Diesel | Diesel | Diesel | ||
| 3 | Operating weight | kg | 15000 | 16000 | 16900 | |
| 4 | Front axle load | kg | 4150 | 5150 | 5820 | |
| 5 | Rear axle load | kg | 10850 | 10850 | 11080 | |
| 6 | Max forward speed | km/h | 40.4 | 38.2 | 36.8 | |
| 7 | Max backward speed | km/h | 25.7 | 24.5 | 24.8 | |
| 8 | Speed gear number | F6/R3 | F6/R3 | F6/R3 | ||
| 9 | Turning radius | mm | 7500 | 7800 | 7800 | |
| 9 | Hydraulic system pressure | Mpa | 18 | 18 | 18 | |
| 11 | Blade length × height | mm | 3660*610 | 3965*610 | 3965*610 | |
| 12 | Front wheel track | mm | 2150 | 2150 | 2150 | |
| 13 | Rear wheel track | mm | 2255 | 2255 | 2255 | |
| 14 | Wheelbase | mm | 5347 | 5647 | 564 | |
| 15 | Engine manufacturer | USA Supplier | USA Supplier | USA Supplier | ||
| 16 | Engine model | 6BTA5.9 | 6BTA5.9 | 6CTA8.3 | ||
| 17 | Engine power | kw | 125 | 132 | 158 | |
| 18 | Overall dimensions | mm | 8305*2695*3420 | 8605*2695*3420 | 8605*2695*3420 | |
Motor Grader
HARMAC

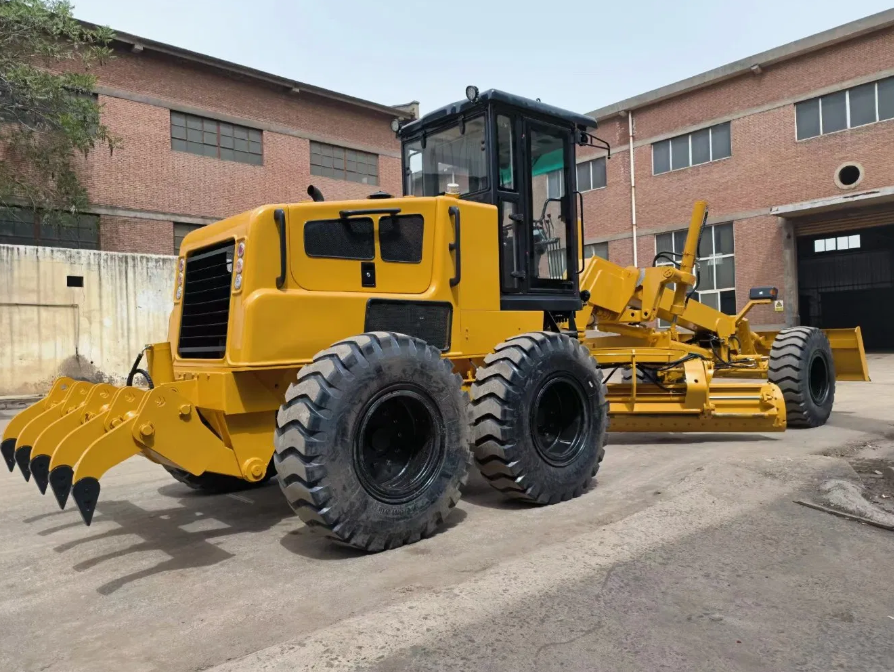

16.5 Ton Motor Grader
Model: PY165C
Motor Grader is a precision construction machine used for leveling, grading, and shaping surfaces. It is widely applied in road construction, maintenance, and site preparation to create smooth and accurate ground surfaces.
Brand
HARMAC
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
