| Model | – | GR1003 |
| Working Parameter | ||
| Maximum steering angle of front wheel | ° | ±49 |
| Maximum slant angle of front wheel | ° | ±17 |
| Maximum oscillating angle of front axle | ° | ±15 |
| Maximum oscillating angle of equilibrium box | ° | ±16 |
| Maximum steering angle of frame | ° | ±27 |
| Minimum turning radius | m | 6 |
| Maximum lifting height | mm | 310 |
| Maximum shoveling depth | mm | 350 |
| Maximum lateral inclination angle | ° | 45 |
| Cutting angle | ° | 28-70 |
| Slewing angle | ° | 120 |
| Length x chord height | mm | 3048 x 450 |
Motor Grader
XCMG

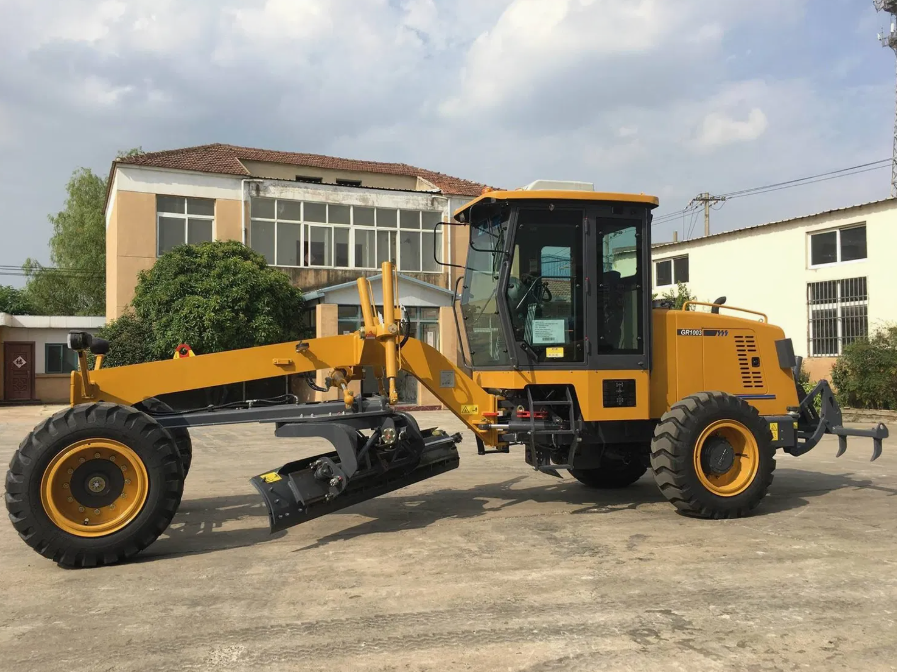

7.5 Ton Motor Grader
Model: GR1003
Motor Grader is a precision construction machine used for leveling, grading, and shaping surfaces. It is widely applied in road construction, maintenance, and site preparation to create smooth and accurate ground surfaces.
Brand
XCMG
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
