Mode ofoperation			TF20
				Mode ofoperation	Q	kg	2000
Load centerdistance	C	mm	600
Beaninglength	X	mm	693
wheelbase	y	mm	1394
Beself-possessed		kg	1370
				Axle load,before/afterfullload		kg	1110/2260
Axle losd.noloadfront/rear		kg	960/410
				Tire type,drive wheel/carrier wheel			polyurethane
Driving wheel(diameter×width)		mm	230×75
				Beaing wheel(diameter×width)		mm	φ85×70
Balance wheelsize		mm	φ130×55
				Number of driving wheels,balance wheels/carrierwheels(X=drivingwheels)		mm	1x+2/4
Drive wheel base	b10	mm	634
Bearing wheel base	b11	mm	380
Maximumliftingheight(h3+h13)	H	mm	3000
The lowest heightafterthegantryislowered	h1	mm	2020
Freeliting height	h2	mm	100
Lifting height	h3	mm	2912
The height of thegantryatitshighestlift	h4	mm	3465
Forklifting height	h5	mm
				Minimum/maximum height of the handleleverinthe driving operatingposition	h14	mm	1150/1480
Am height	h8	mm
				Fork dropheight	h13	mm	88
Vehiclelength(includingtow hook)	11	mm	2035
The lengthofthe verticalfaceofthefork	12	mm	885
Fullcar width	b1/bZ	mm	850
Forksize	s/e/	mm	60×190×1150
Stop shelfoutside width	b3	mm	…
				The forkis wideoutside	b5	mm	570
Distance between bearing surface/wheelarm	b4	mm
				Full loaddoorframe bottomclearance	m1	mm
Ground clearance atcenterof wheelbase	m2	mm	28
Right-angle stacking channel width(pallets1000length×1200width)	Ast	mm	2610/2971
Right-angle stackingchannel width[pallets 800width×1200length)	Ast	mm	2580/2941
Turning radius	Wa	mm	1738/2099
Travelspeed fulVempty		km/h	5.5/6.0
				Lifting speedfullload/noload		m/s	0.13/0.16
Descent speedfullload/noload		m/s	0.32/0.23
						%	8月16日
Running brake			electromagnetism
				Drive motor rated power SZ60 minutes		kKW	1.6
Hoisting motor rated power S315%		KW	3
				Battery voltage/nominal capacity		VAh	24/280
Battery weight		kg	240
				Drive unittype			communication
Steeringtype			corpuscle
				Noiselevel S		dB(A)	74

Electric Stacker HARMAC

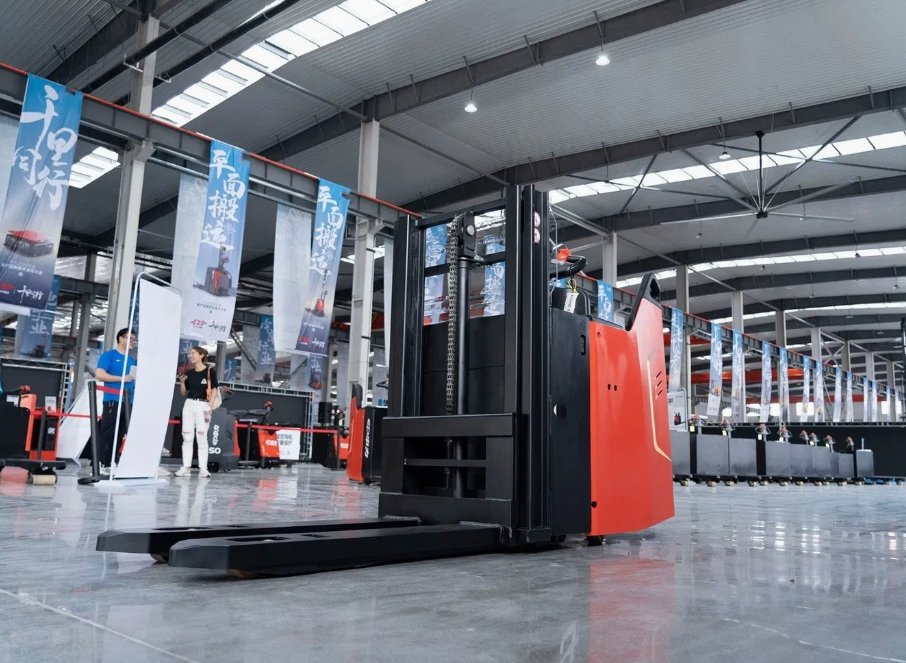

2 Ton Electric Stacker

Model: TF20

An Electric stacker is a compact, battery-powered material handling equipment designed for lifting, stacking, and transporting palletized goods over short distances. It combines ease of operation with high efficiency, making it an ideal solution for warehouses, retail storage, logistics centers, and light industrial environments.

Brand

HARMAC

Warranty

3 Years

ISO CE Certified

Worldwide Shipping

Strict QC
