| operating weight | kg | 21000 | |
| Dimensions | long | mm | 7000 |
| Wide (pushing shovel) | mm | 3350 | |
| Wide (outside of the front wheel) | mm | 3350 | |
| Wide (outside of the rear wheel) | mm | 3350 | |
| high | mm | 3530 | |
| Wheelbase | mm | 2750 | |
| Ground clearance | mm | 280 | |
| wheel | Pressure roller width (front/rear) | mm | 900 |
| Pressure roller diameter (front/rear, out of the tooth) | mm | 1600 | |
| Pressure roller diameter (front/rear, out-of-wheel) | mm | 1290 | |
| Number of teeth (front/rear) | 64 | ||
| Motion transfer system | Engine manufacturer | WEICHAI | |
| model | WD10G220E23 | ||
| Engine power | kw | 162 | |
| Engine speed | r/min | 2000 | |
| Electrical System | V | 24 | |
| Number of driving wheels | 4 | ||
| speed | front I 0-4.2 | km/h | |
| front II km/h 0-15.7 | km/h | ||
| rear km/h 0-5.8 | km/h | ||
| Push shovel | Pusher height | mm | 1880 |
| Push shovel width | mm | 3350 | |
| Pusher lift height | mm | 980 | |
| Push shovel into the ground | mm | 150 | |
| Braking System | Driving brake, pneumatic oil, | ||
| Parking/emergency brake machinery, uplift brake | |||
| steering system | Steering mode Hydraulic, central articulated, sub-pendulum swing | ||
| ±° 40 Steering angle ±° 40 | |||
| ±° 15 Lateral swing angle ±° 15 | |||
| Turning radius (outside of the front wheel) mm 6085 | |||
Landfill Compactor
HARMAC

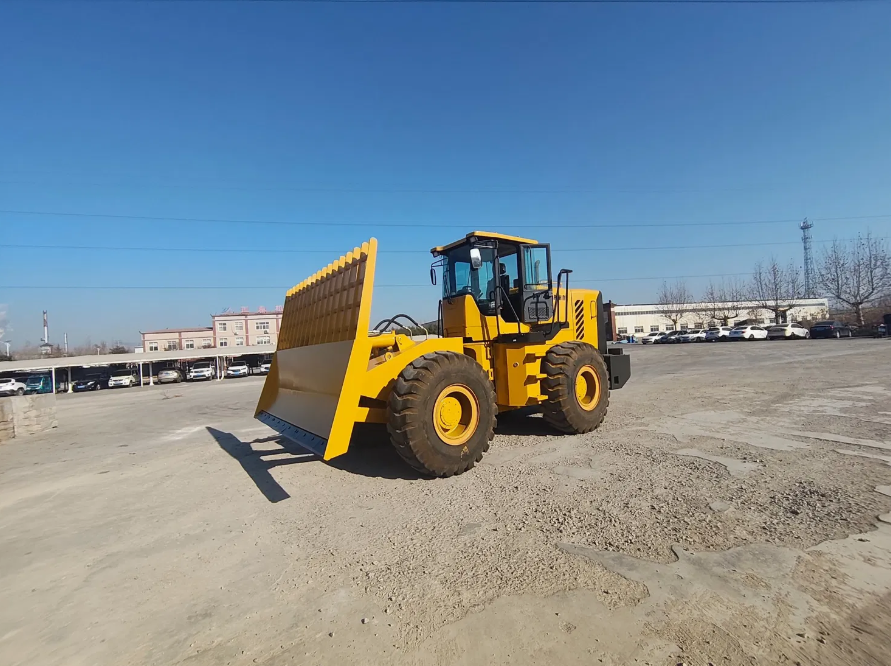

21 Ton Landfill Compactor
Model: SLC210
Landfill Compactor is a heavy-duty machine designed to compress and compact waste in landfill sites, reducing volume and increasing ground stability. It improves landfill efficiency, extends site lifespan, and ensures better waste management operations.
Brand
HARMAC
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
