| Model | PY180C |
| Operating mass | 16000kg |
| Max. forward speed | 36 Km/h |
| Max. backward speed | 25Km/h |
| Front axle load | 5150kg |
| Rear axle load | 10850kg |
| Speed gear number | F6/R3 |
| Minimum Turning radius | 7800mm |
| Hydraulic system pressure | 18Mpa |
| Blade length × height | 3965×610 mm |
| Blade tilt angle | ±90° |
| Blade slewing angle | 360° |
| Front wheel tilt angle | ±17° |
| Front wheel track | 2150 mm |
| Rear wheel track | 2255mm |
| Overall dimension (LxWxH) | 8605×2695× 3420mm |
| Wheel base | 5647mm |
| Diesel engine power | 132kw/2200rpm |
| Diesel engine model | CUMMINS6BTA5.9 |
| Fuel tank capacity | 228L |
| Hydraulic tank capacity | 170L |
| Tire seize | 17.5-25 |
| Multi tandem Valve | Husco |
| Rear Ripper | 5 teeth |
Motor Grader
HARMAC

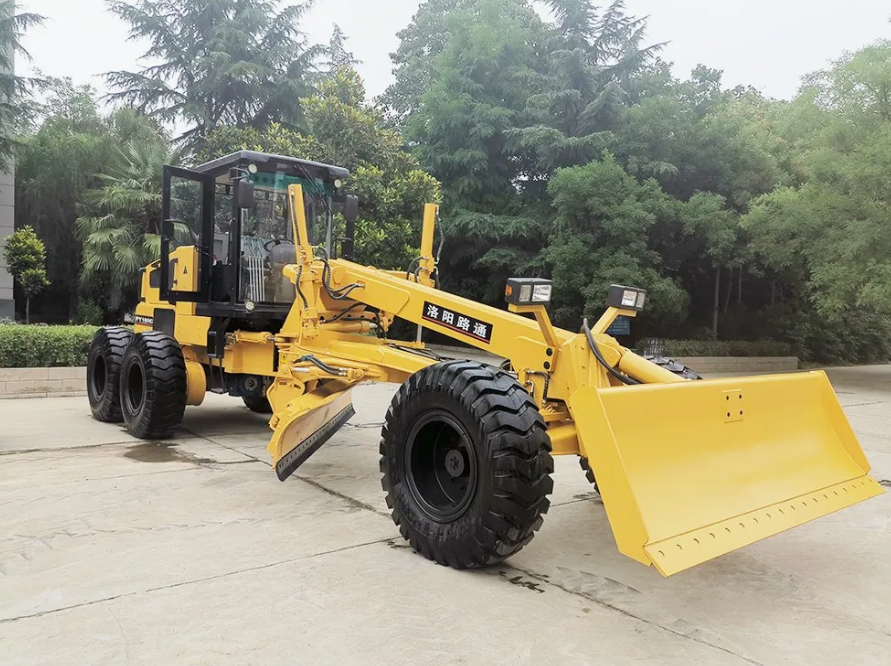

16 Ton Motor Grader
Model: PY180C
Motor Grader is a precision construction machine used for leveling, grading, and shaping surfaces. It is widely applied in road construction, maintenance, and site preparation to create smooth and accurate ground surfaces.
Brand
HARMAC
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
