| Operating Weight | 15,930 kg |
| Engine Model | SDEC SC9D220G2 |
| Rated Power | 162 kW/217 hp |
| Overall Dimensions L*W*H | 8854x2630x3360 mm |
| Blade Length | 4,279 mm |
| Max. Drawbar | 85 kN |
| Max. Lift above Ground (Blade) | 475 mm |
| Max. Depth of Cut (Blade) | 715 mm |
| Max. Blade Tip – Forward | 40º |
| Max. Blade Tip – Rear | 5º |
| Front Axle Steering Angle Left/Right | 47.5º |
| Min. Turning Radius | 7.8 m |
| Tandem Oscillation (Front up) | 15º |
| Tandem Oscillation (Rear up) | 25º |
| Transmission Model | Hangchi 6WG180 |
| Gears | F6/R3 |
| Tires | 17.5-25 |
Motor Grader
SEM

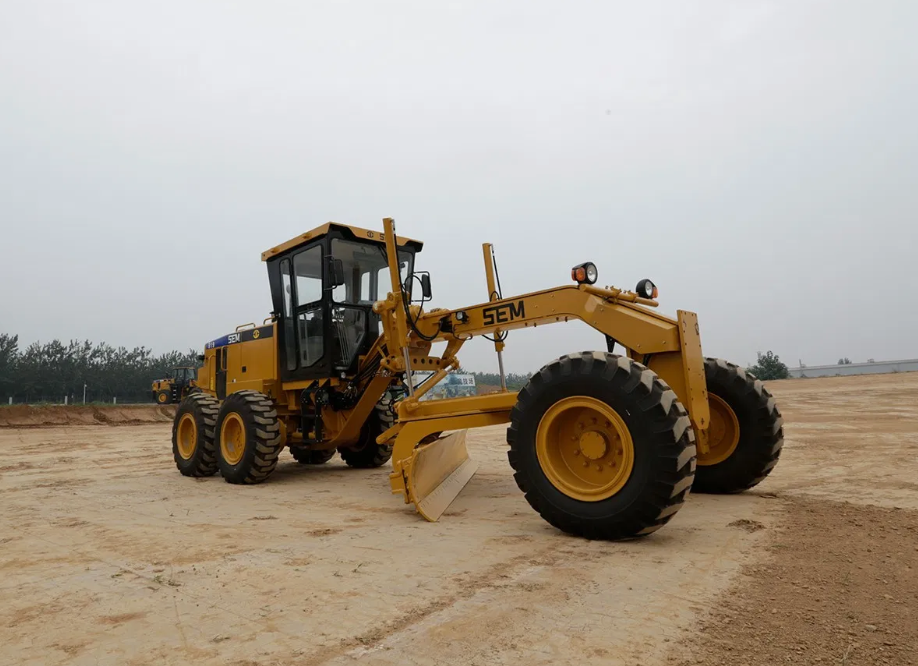

16 Ton Motor Grader
Model: SEM919
Motor Grader is a precision construction machine used for leveling, grading, and shaping surfaces. It is widely applied in road construction, maintenance, and site preparation to create smooth and accurate ground surfaces.
Brand
SEM
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
