| Item | GR100 |
| Engine model | J-XZGR100-4BT3.9 |
| Rated power/speed | 75(2400r/min) |
| Overall dimension (standard) | 6880X2375X3150 |
| Total weight (standard) | 7000kg |
| Tire specification | 16/70-24 |
| Ground clearance (front axle) | 550mm |
| Tread | 1900mm |
| Space of front and rear axles | 4885 mm |
| Forward velocity | 5,8,11,17,24,38km/h |
| Reverse speed | 5,11,24km/h |
| Tractive effort f=0.75 | 39.2N |
| Maximum gradeability | 20% |
| Tire inflation pressure | 300kPa |
| Working system pressure | 16MPa |
Motor Grader
XCMG

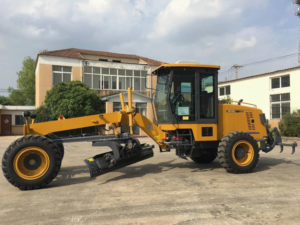

7 Ton Motor Grader
Model: GR100
Motor Grader is a precision construction machine used for leveling, grading, and shaping surfaces. It is widely applied in road construction, maintenance, and site preparation to create smooth and accurate ground surfaces.
Brand
XCMG
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
