| Overall weight | 16000 kg |
| LxWxH | 9200x2500x3350mm |
| Engine | WP6G175 |
| Rated power | 161 kw |
| Type | Inline,water-cooled,four-stroke,direct injection |
| Detail Specification | |
| Min.ground clearance of front axle | 560 mm |
| Min.ground clearance of rear axle | 460 mm |
| Wheel tread | 1590 mm |
| Wheelbase(front/rear) | 6360 mm |
| Wheelbase of rear axles | 1510 mm |
| Max. swing angle of front axle | ±16° |
| Max. steering angle of front wheel | ±45° |
| Steering angle of articulated frame | ±25° |
| Converter type | YJ315 |
| Drive axle model | 215 balance box axle |
Motor Grader
HARMAC

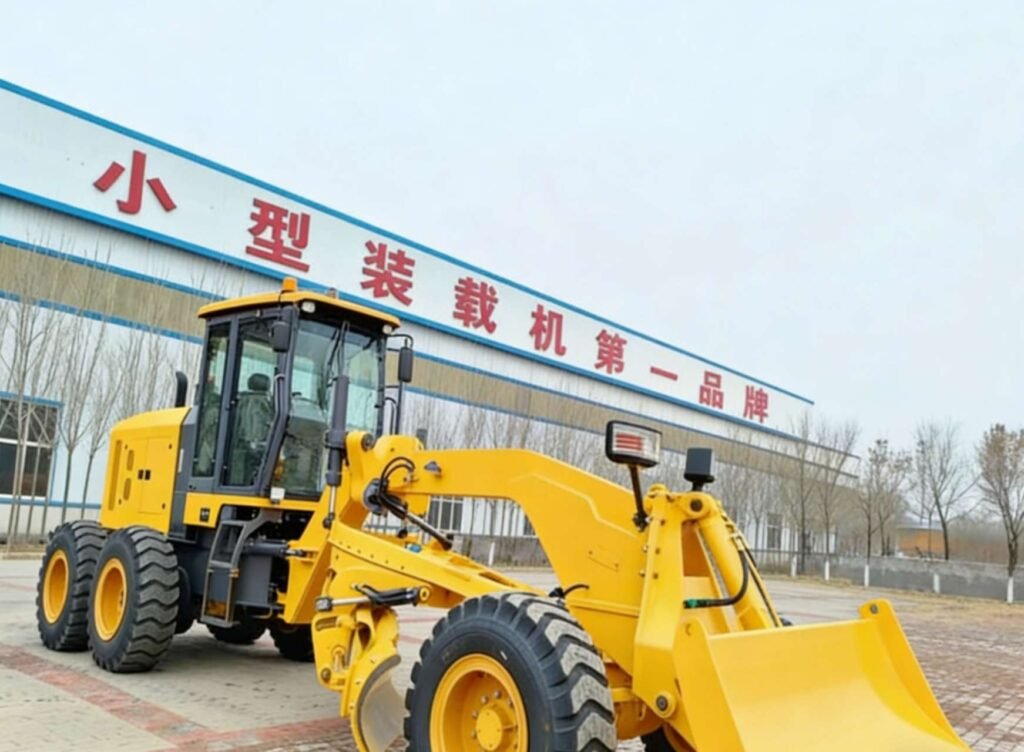

22 Ton Motor Grader
Model: PY220
Motor Grader is a precision construction machine used for leveling, grading, and shaping surfaces. It is widely applied in road construction, maintenance, and site preparation to create smooth and accurate ground surfaces.
Brand
HARMAC
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
