| Item | Unit | XLZ2303S |
| Milling width | mm | 2300/2100 |
| Maximum milling depth | mm | 0-400 |
| Cutter spacing | mm | 162/144 |
| Diameter of milling wheel (with cutter) | mm | 1380 |
| Manufacturer | Weichai | |
| Cooling type | Water-cooled + air-air inter-cooled | |
| Model | WP13G530E310 | |
| The quantity of cylinder stator | 6 | |
| Rated power | kW | 390 |
| Engine speed | rpm | 2100 |
| Oil consumption: Full load | kg/h | 69.86 |
| Working speed | km/h | 0- 3.2/4 |
| Traveling speed | km/h | 0-22.8/29 |
| Theoretical gradeability (working gear) | % | 20 |
| Ground clearance | mm | 350 |
| Front axle load | kg | 17000 |
| Rear axle load | kg | 9500/5500 |
| Shipping weight | kg | 26500/22500 |
| Working weight | kg | 26500/22500 |
| Fuel tank | L | 650 |
| Hydraulic oil tank | L | 380 |
| Water tank | L | 1000 |
| Voltage of electric system | V | 24 |
| Machinery(length*width*height) | mm | 9232x3262X3450 |
Road Construction Equipment
HARMAC

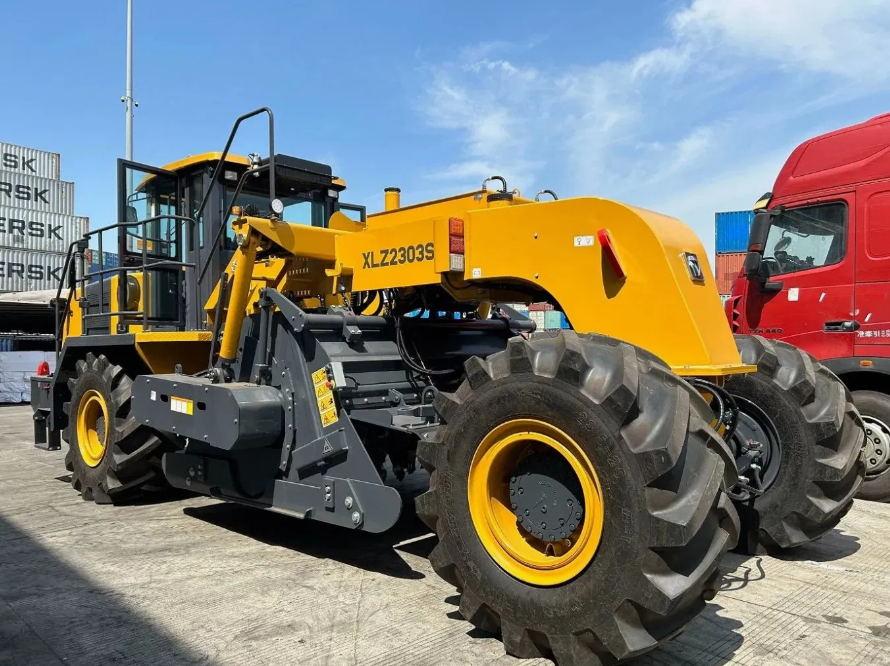

XLZ2303S Soil Stabilizer
Model: XLZ2303S
Soil Stabilizer is a construction machine used to mix soil with cement, lime, or other binding agents to improve ground strength and stability. It is widely used in road construction, foundation preparation, and ground improvement projects.
Brand
HARMAC
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
YOU MAY ALSO LIKE
Related Equipment
Road Construction Equipment

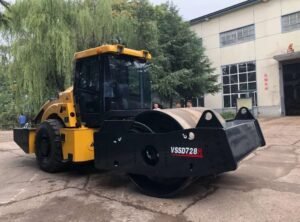

VSR728H Single Drum Vibration Compressor Hydraulic Road Roller
