| Model | LB244 | |
| Dimension (L×W×H)(mm) | 3510×1540×2240 | |
| ROPS/Sunshade/Cabin | sport bar/ ROPS | |
| Min. operating weight(kg) | 1590 | |
| Ballast/FR(kg) | F12x6, R20x2 | |
| Wheelbase(mm) | 1700 | |
| Wheel track(front/rear)(mm) | 960/1100/1200/940-1150 | |
| Engine | Model | 4TG70K /Laidong 50 horsepower National II |
| Type | four-stroke, water-cooled, direct injection | |
| Qty of cylinders(cylinder) | 3 | |
| Rated power(KW) | 17.6 | |
| Rated speed(r/min) | 2400 | |
| Drive train | Clutch | Single disc, dry,dual stage |
| Gearbox | 8+8 | |
| Gear shift type | engaging sleeve shift | |
| Steering | Steering type | Hydraulic steering |
| Brake | Brake type | Hydraulicbrake, wet, disc |
| Walking device | Tire size (front/rear) | 7.5-16/11.2-24 |
| Working device | Suspension device type | Rear, three-point suspension |
| Suspension device category | CategoryⅡ | |
| Tillage Depth Adjustment | position adjustable | |
| Hydraulic output device | 1 | |
| Standard PTO speed(r/min) | 540/720(1000) | |
Agricultrual Equipment
HARMAC

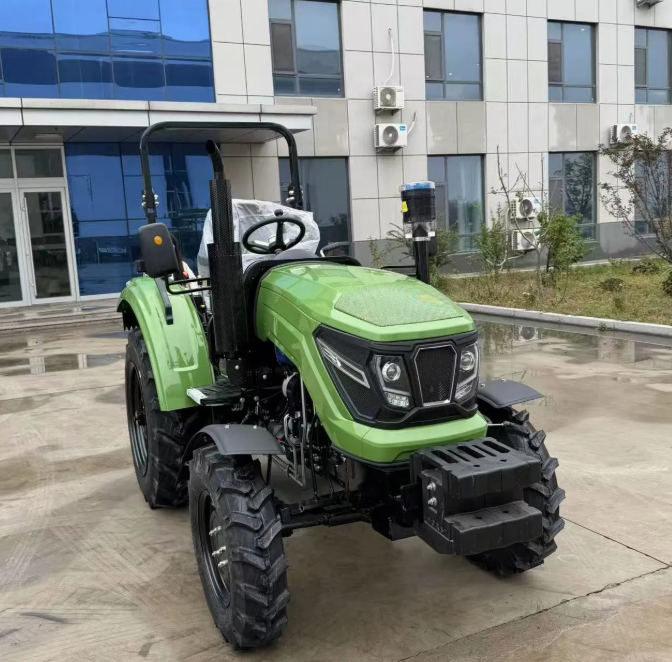

24HP Farm Tractor
Model: LB244
A farm tractor is a powerful vehicle designed for agricultural tasks, primarily used to tow or push farming equipment and machinery. Tractors are essential for various farming operations, such as plowing, tilling, planting, harvesting, and transporting materials.
Brand
HARMAC
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
