| Product Name | 25 tons heavy duty Hook Lift Garbage Truck |
| Model | CLW5255ZXXBHJ |
| Chassis Brand | SHACMAN L3000/M3000 |
| Driving Type | 6*4 LHD |
| Gross Weight | 25000kg |
| Related Loading Mass | 13670kg |
| Curb Weight | 11200kg |
| Dimension | 8425*2550*3250mm |
| Wheelbase | 4375+1350(mm) |
| Front Axle Loading Capacity | 7000kg |
| Rear Axle Loading Capacity | 18000kg |
| Approach angle | 20° |
| Departure angle | 13° |
| Front Suspension | 1130mm |
| Rear Suspension | 2140mm |
| Tire | 11.00R20,10+1 PCS |
| Max Speed | 100 (Km/h) |
| Engine parameters: | |
| Model | |
| Horse Power | 199hp |
| Displacement | 3900cc |
| Emission Standard | Euro IV |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling) |
| Superstructure Parameter: | |
| Tank Volume | 25m3/28m3 |
| Tank Shape | Arc-shape |
| Tank Material thickness | Bottom:3mm Side:3mm |
| Tank Material | T420(Special Steel) |
| Compression Ratio | ≥2.5 |
| The effective volume of the bucket | ≥0.8m³ |
| Loading cycle time | ≤40 s |
| unload garbage time | ≤45s |
| control method | Automatic,Manual |
| Maximum pressure of hydraulic system | 20MPa |
| Control System | Siemens PLC |
| Engine power control | Fully automatic control |
| Tumbler mechanism | 240L Garbage bin(Others Optional) |
Hook Lift Truck
DONGFENG

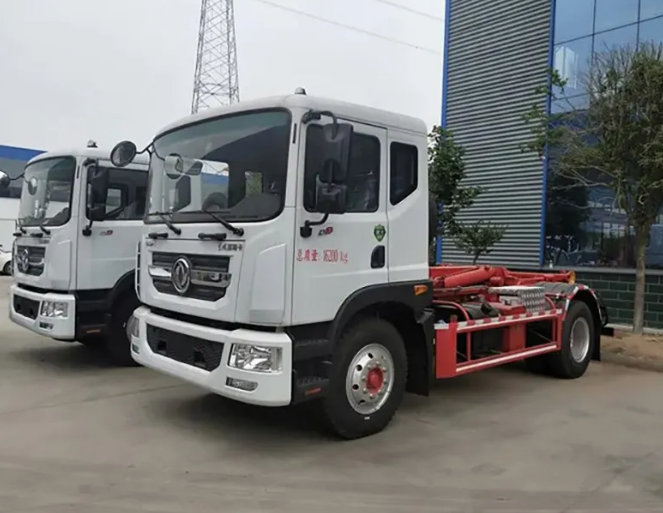

25-ton suspended garbage truck – lifting and rolling hook arm garbage truck
Model: DF7053OPER73
The Hook Lift Truck is designed for fast and efficient container handling. It provides flexible operation, high payload capacity, and is widely used in waste collection, construction, and logistics.
Brand
DONGFENG
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
