| Model | TK254 | TK304 | TK354 | TK404 | ||
| Type | 4×4 Wheeled Type | 4×4 Wheeled Type | 4×4 Wheeled Type | 4×4 | ||
| Overall Dimension | L×W×H | 3150x1450x2030 | 3150x1450x2030 | 3250x1500x2040 | 3350×1500×2130 | |
| (mm) | Tread | Front Wheel | 960,1220(ususl) | 960,1220(ususl) | 960,1220(ususl) | 1200 (usual) |
| Rear Wheel | 960,1160(usual),1200,1300 | 960,1160(usual),1200,1300 | 960,1160,1200(usual),1300 | 1200 (usual) | ||
| Wheel Base | 1715 | 1715 | 1820 | 1800 | ||
| Min. Ground Base | 360(the bottom of transfer case) | |||||
| Min. Usage Mass(kg) | 1400 | 1400 | 1600 | 1500 | ||
| Engine | Model | Laidong KM385 | Laidong KM3T30 | Laidong 4L22BT | Laidong 4L23BT | |
| Type | Vertical, water cooled and 4-stroke | |||||
| Rated Power(kw) | 18.4 | 22.1 | 25.7 | 29.4 | ||
| Rated Rev.(r/min) | 2300 | 2300 | 2350 | 2400 | ||
| Fuel | Diesel Oil | |||||
| Tire | Front & Rear Wheel | 6.00-16 | ||||
| Optional Front | 9.50-24 | |||||
| & Rear Wheel | ||||||
| Clutch | Dry-friction,single stage or Dry-friction,Two Stage | |||||
| Steering | Hydraulic type | |||||
| Transmission Box | (4+1)×2 Composed | |||||
| Suspension Type | Post Positioned Tri-point Suspension Catalogue | |||||
| PTO | Type and Rev.(r/min) | Post-position, half-independent,540/720 | ||||
| Spline Size | φ35 Rectangle Spline with 6 teeth | |||||
Agricultrual Equipment
HARMAC

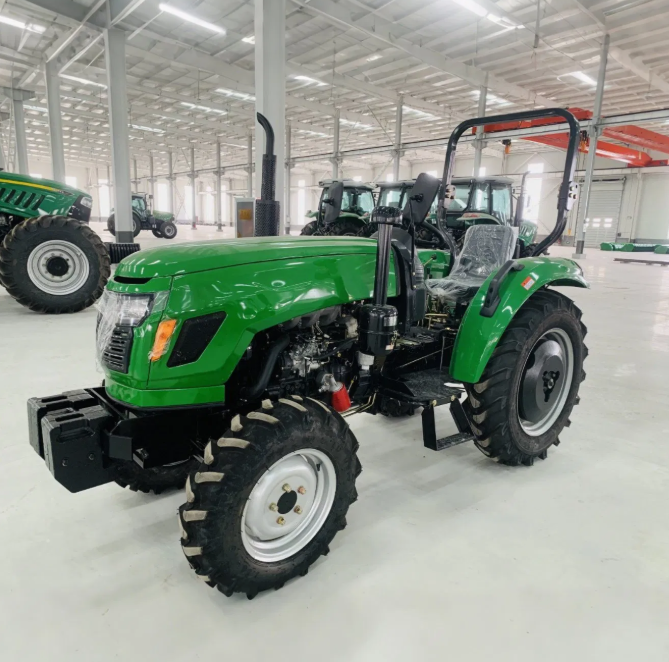

25HP Farm Tractor
Model: TK254
A farm tractor is a powerful vehicle designed for agricultural tasks, primarily used to tow or push farming equipment and machinery. Tractors are essential for various farming operations, such as plowing, tilling, planting, harvesting, and transporting materials.
Brand
HARMAC
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
