| Model | LZ304 |
| Driving Type | 4WD |
| Overall dimensions (mm) | 3250X1450X2030mm |
| Wheel Base (mm) | 1715mm |
| Front Tread (mm) | 960/1220mm |
| Rear Tread (mm) | 960/1160/1200/1300mm |
| Min. Ground Clearance | 300mm |
| Min. Operation Mass (kg) | 1440kg |
| Rated PTO Power (kW) | 18.79kW |
| Rated Drawbar pull (kN) | 6kN |
| Starting Method | Electric Starting |
| Engine Model | KM390BT |
| Engine Type | 4-stroke, vertical |
| Displacement | 1.909L |
| Rated power (kW) | 22.1kW |
| Rated Revolution (rpm) | 2300rpm |
| Cooling type | Water cooling |
| Clutch | Dual stage, dry friction, single plate, constant mesh |
| Transmission | 8 forwards, 2 reverse |
| Steering type | Front wheel power steering |
| Braking system | Shoe brake |
| Front Tyre Size | 6.00-16 |
| Rear Tyre Size | 9.5-24 |
| Three Point Hitch | Category I, rear mounted |
| Hydraulic lift | Semi-seperated |
| Tillage depth control method | Position and floating control |
| PTO type | rear mounted, semi-independent, Ø35mm X 6 teeth |
| PTO Rev . | 540/1000rpm |
| Max. Lifting Force (kN) | 4.97kN |
Agricultrual Equipment
HARMAC

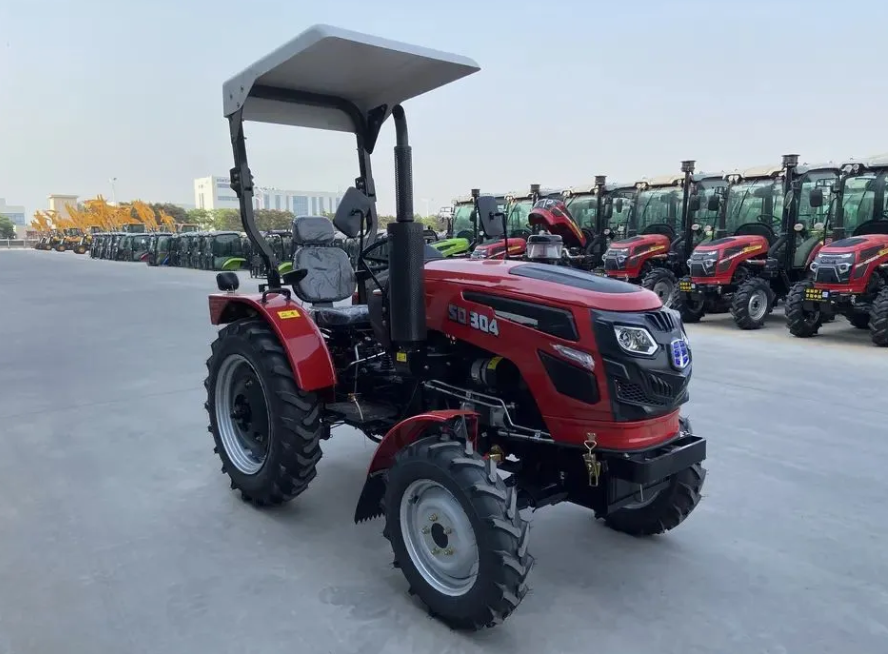

30HP Farm Tractor
Model: LZ304
A farm tractor is a powerful vehicle designed for agricultural tasks, primarily used to tow or push farming equipment and machinery. Tractors are essential for various farming operations, such as plowing, tilling, planting, harvesting, and transporting materials.
Brand
HARMAC
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
