| Model | CPC30 | CPC35 | CPC38 |
| Rated lifting load(kg) | 3000 | 3500 | 3800 |
| Load center distance(mm) | 500 | ||
| Free lifting height (mm) | 160 | ||
| Wheelbase(mm) | 1700 | ||
| Maximum lifting speed (full load/NO load) (mm/s) | 440/480 | 330/370 | 340/380 |
| Maximum gradeability(Full-load/No-load) (%) | 15/20 | ||
| Total length (with fork/without fork) (mm) | 3752/2682 | 3763/2693 | 3963/2893 |
| Width (mm) | 1225 | ||
| Overhead guard height(mm) | 2090 | ||
| Minimum turning radius (outer side) (mm) | 2400 | 2420 | 2710 |
| Minimum right angle aisle width(mm) | 4260 | 4260 | 4260 |
| maximum working speed(Full-load/NO-load) (km/h) | 18/19 | 19/19 | |
| Minimum ground clearance(mm) | 135 | ||
| Mast tilt angle(front/rear) % | 6°/12° | ||
| Tire size (front) | 28*9-15-14PR | ||
| Tire size (after) | 6.5-10-10PR | ||
| Fork size (mm) | 1070*125*45 | 1070*125*50 | 1070*150*50 |
| Forklift weight(kg) | 4250 | 4500 | 4800 |
| engine model | Quanchai4C2-50V32(National III)/Quanchai4C2-50C41(Beijing Four) | ||
Diesel Forklift
HARMAC

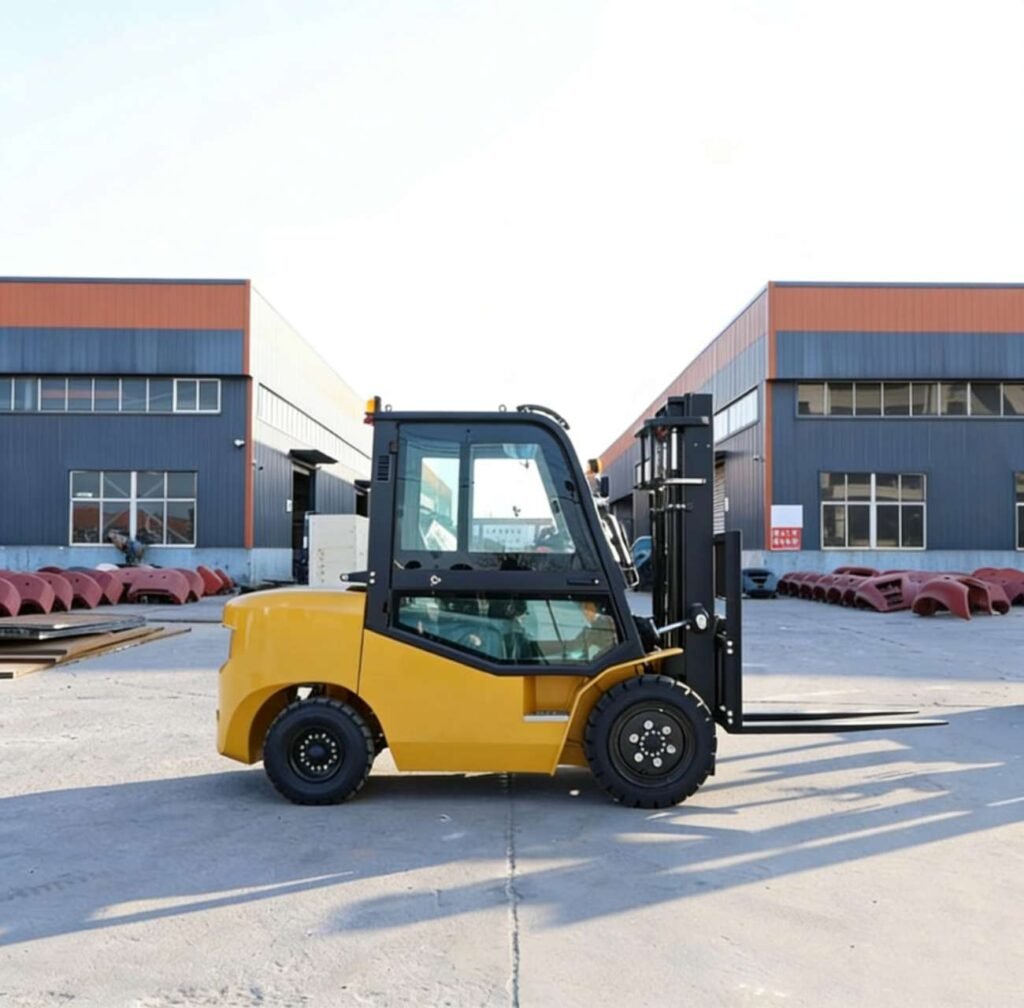

3.5 Ton Diesel Forklift
Model: CPC35
Diesel forklift designed for heavy-duty material handling, featuring high load capacity, fuel efficiency, and stable performance for warehouse and construction applications.
Brand
HARMAC
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
