| Horsepower | 30HP | ||
| Model NO. | SD304Y | ||
| Type | 4WD | ||
| Overall dimensions | L*W*H to steering wheel(mm) | 2400*1200*1300 | |
| wheel tread | front wheel(mm) | 960 | |
| rear wheel(mm) | 960-1300 | ||
| wheel base(mm) | 1630 | ||
| Min ground clearance(mm) | 450 | ||
| Turning radius (m) | 2.4 | ||
| Structure mass (kg) | 1000±30 | ||
| Engine | Model | KM390 | |
| Type | Inline, direct injection, water cooled, four stroke | ||
| Rated power(kw) | 22.1 | ||
| Rotating speed(r/min) | 2400 | ||
| fuel | |||
| Tire | front Tire | 6.0-12 | |
| rear Tire | 7.5-16 | ||
| Clutch | single disc, dry type | ||
| Steering | hydraulic steering | ||
| Transmission Box | 6+1 | ||
| Suspension type | rear positioned three point linkage catergory 0 | ||
| PTO | Type and speed(r/min) | Non-independent 540r/min | |
| Spline size (mm) | Rear positioned: 6 splines | ||
Agricultrual Equipment
HARMAC

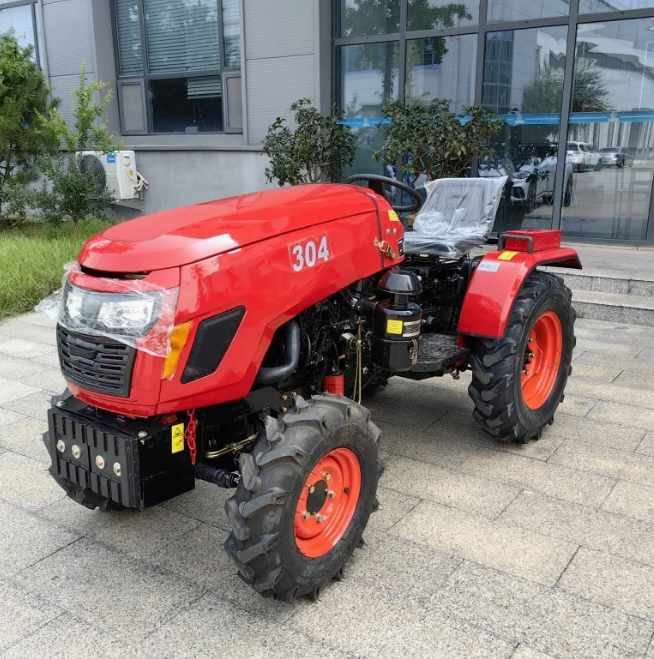

30HP Farm Tractor
Model: SD304Y
A farm tractor is a powerful vehicle designed for agricultural tasks, primarily used to tow or push farming equipment and machinery. Tractors are essential for various farming operations, such as plowing, tilling, planting, harvesting, and transporting materials.
Brand
HARMAC
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
