| Rated operating load | kg | 5000 | |
| Bucket capacity | m³ | 2.5~4.5 | |
| Machine weight | kg | 17500±300 | |
| Dump clearance at maximum lift | mm | 3100~3780 | |
| Reach at maximum lift | mm | 1100~1220 | |
| Wheel base | mm | 3300 | |
| Tread | mm | 2250 | |
| Max.breakout force | kN | 175±5 | |
| Max.horse power | kN | 160±5 | |
| Hydraulic cycle time-raise | s | ≤6 | |
| Total hydraulic cycle time | s | ≤10.5 | |
| Min. turning radius over tyres | mm | 5925±50 | |
| Articulation angle | ° | 38 | |
| Gradeability | ° | 30 | |
| Tyre size | 23.5-25-16PR | ||
| Overall machine dimension L×W×H | mm | 8225×3016×3515 | |
| Model | WD10G220E21 | ||
| Rated Power | kW | 162 | |
| Travel Speed | Ⅰ-gear(F/R) | km/h | 13/17 |
| Ⅱ-gear(F) | km/h | 41 | |
Earthmoving Equipment
HARMAC

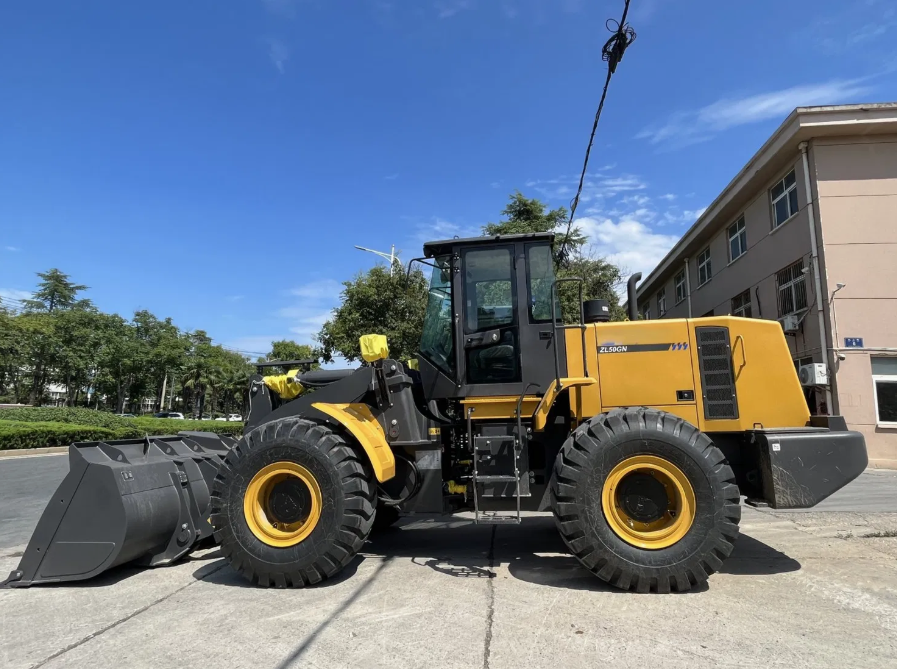

5000KG Wheel Loade
Model: Zl50GN
A Wheel Loader is a powerful and versatile machine used for loading, moving, and handling bulk materials such as sand, soil, and gravel. It offers high efficiency, strong performance, and flexible operation for construction, mining, and agricultural applications.
Brand
HARMAC
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
