| Model | BIA 254 304 354 404 504 | |
| Type | Wheeled Type, 4WD | |
| Dimensions(L.×W.×H. mm) | 3,250*1,450*2,030 | |
| Tread | Front Wheel (mm) | 1,200 (usual) /960 |
| Rear Wheel (mm) | 960 / 1,160 / 1,200(usual) / 1,300 | |
| Wheel Base (mm) | 1,715 | |
| Min.Ground clearance (mm) | 300(The bottom of transfer case) | |
| Engine | Type | 4-cylinder, in-line, water cooled, four stroke |
| Rated Rev. (r/min) | 2,300 | |
| Fuel | Diesel | |
| Tire | Front Wheel | 6.0-16 |
| Rear Wheel | 9.5-24 | |
| Clutch | Dry-friction, single disc and dual-stage | |
| Steering | Hydraulic Power Steering | |
| Transmission Box | 8F+2R | |
| Hitching Type | Rear mounted, 3-pointed linkage | |
| PTO | Type and rev. (r/min) | Rear mounted, semi-independent, 540/720 |
| Spline Size | I35 rectangle spline with 6 teeth | |
Agricultrual Equipment
HARMAC

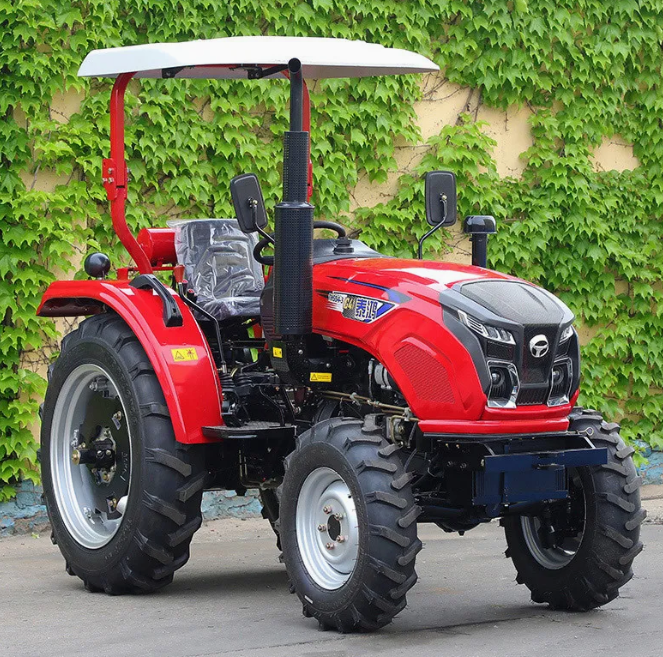

50HP Farm Tractor
Model: BIA504
A farm tractor is a powerful vehicle designed for agricultural tasks, primarily used to tow or push farming equipment and machinery. Tractors are essential for various farming operations, such as plowing, tilling, planting, harvesting, and transporting materials.
Brand
HARMAC
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
