| Tractor Power | 50hp |
| Chassis Type | TE chassis |
| Drive method | 4WD |
| Overall dimension(L*W*H)mm | 3340*1520*2600mm |
| Wheel tread (mm) | 1180-1200 adjustable |
| Wheel base (mm) | 1880 |
| Min Ground clearance (mm) | 320 |
| Min service weight (kgs) | 1980 |
| Diese engine | |
| Diese engine | Laidong EURO 5 |
| Type | inline, direct injection, water cooled |
| Intake method | NA |
| Engine power | 36.8kW/2400rpm |
| Cylinder NO.-BoreX stroke | 4-95*100 |
| Displacement (L) | 2.836L |
| Fuel | diesel |
| Clutch | dry type, dual action |
| Transmission shift | 8F+8R |
| Working Part | |
| Suspension type | three point linkage |
| Hydraulic output | two group of hydraulic; Options: 3 groups |
| PTO speed | 540/1000rpm |
| PTO splines | 6 |
| Max traction power | ≥15.3kN |
| Max lifting power | ≥9kN |
| Travelling Part | |
| Tire size | 280/70R16, 360/70R24 |
| Theorectical speed | Forward:2.06-31.30; Reverse:2.71-12.52 |
Agricultrual Equipment
HARMAC

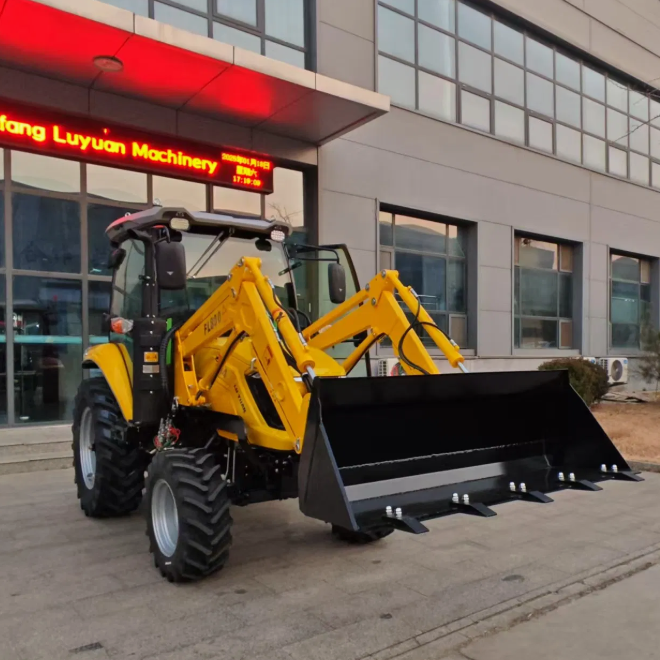

50HP Farm Tractor
Model: LY504
A farm tractor is a powerful vehicle designed for agricultural tasks, primarily used to tow or push farming equipment and machinery. Tractors are essential for various farming operations, such as plowing, tilling, planting, harvesting, and transporting materials.
Brand
HARMAC
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
