| Model | TK504 | TK604 | TK704 | TK804 | ||
| Type | 4×4 Wheeled Type | 4×4 Wheeled Type | 4×4 Wheeled Type | 4×4 Wheeled Type | ||
| Dimensions | Length | 3200 | 3200 | 3500 | 3700 | |
| of Tractor | Width | 1515 | 1515 | 1610 | 1610 | |
| (mm) | Height | 1830 | 1830 | 1860 | 1860 | |
| Tread | Front Wheel | 1250 | 1250 | 1300 | 1300 | |
| Rear Wheel | 1200,1300(usual),1400 | 1200,1300(usual),1400 | 1200,1300(usual),1400 | 1200,1300(usual),1400 | ||
| Wheel Base | 2010 | 2010 | 2200 | 2200 | ||
| Min. Ground Base | 325(the bottom of steering horizontal pulling rod) | 325(the bottom of steering horizontal pulling rod) | 390(the bottom of steering horizontal pulling rod) | 390(the bottom of steering horizontal pulling rod) | ||
| Min. Usage Mass (kg) | 2160 | 2160 | 2300 | 2300 | ||
| Engine | Model | quanchai498 | quanchai4105 | quanchai4108T70 | quanchai4108T80 | |
| Type | Vertical, water cooled and 4-stroke | Vertical, water cooled and 4-stroke | Vertical, water cooled and 4-stroke | Vertical, water cooled and 4-stroke | ||
| Rated Power(kw) | 36.8 | 44.1 | 51.4 | 58.8 | ||
| Rated Rev.(r/min) | 2300 | 2400 | 2400 | 2400 | ||
| Fuel | Diesel Oil | Diesel Oil | Diesel Oil | Diesel Oil | ||
| Tire | Front Wheel | 6.5-16 | 6.5-16 | 7.5-16 | 7.5-16 | |
| Rear Wheel | 11.2-24 | 11.2-24 | 11.2-28 | 11.2-28 | ||
| Clutch | dry-friction, single disc and two stage | dry-friction, single disc and two stage | dry-friction, single disc and two stage | dry-friction, single disc and two stage | ||
| Steering | Hydraulic type | Hydraulic type | Hydraulic type | Hydraulic type | ||
| Transmission Box | two shafts, 2×(4+1) composed | two shafts, 2×(4+1) composed | two shafts, 2×(4+1) composed | two shafts, 2×(4+1) composed | ||
| Suspension Type | Post Positioned Tri-point Suspension Catalogue II | Post Positioned Tri-point Suspension Catalogue II | Post Positioned Tri-point Suspension Catalogue II | Post Positioned Tri-point Suspension Catalogue II | ||
| PTO | Type and Rev.(r/min) | Post-position, half-independent, | Post-position, half-independent, | Post-position, independent, | Post-position,independent, | |
| 540/760 or 540/1000(optional) | 540/760 or 540/1000(optional) | 540/760 or 540/1000(optional) | 540/760 or 540/1000(optional) | |||
| Spline Size | I38 Rectangle Spline with 8 teeth | I38 Rectangle Spline with 8 teeth | I38 Rectangle Spline with 8 teeth | I38 Rectangle Spline with 8 teeth | ||
Agricultrual Equipment
HARMAC

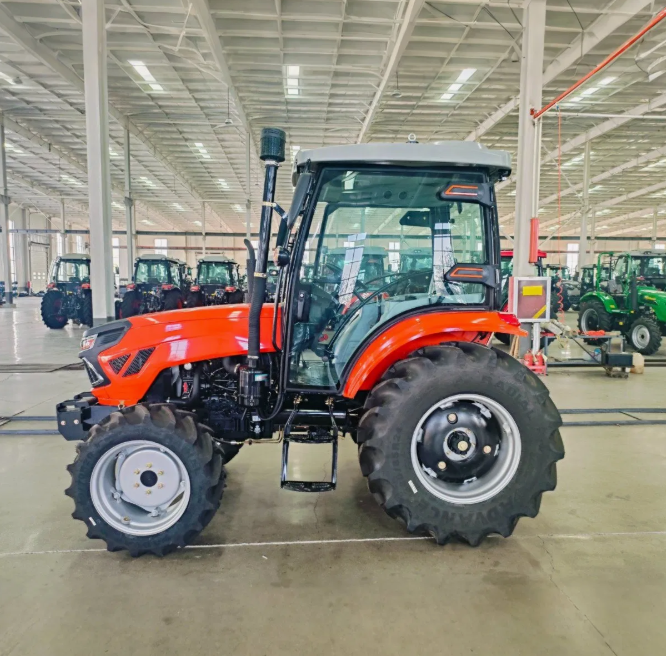

50HP Farm Tractor
Model: TK504
A farm tractor is a powerful vehicle designed for agricultural tasks, primarily used to tow or push farming equipment and machinery. Tractors are essential for various farming operations, such as plowing, tilling, planting, harvesting, and transporting materials.
Brand
HARMAC
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
