Projec		Parameters
			Chassis	Engine Type	C 6C8.3
	Engine Power/Speed	164kW/2200rpm
				Crawler Expansion Width (From The Outside)	4000mm
	Crawler Board Width	800mm
				Traction Force	390
Power Head	Max. Output Torque	180
	Power Head Speed	7*25
				Max.Pull-Down Piston Push	`120
	Max.Pull-Down Piston Pull	180
				Pressure Oil Cylinder Stroke	3600
Winch	Main Winch
	Max.Line Pull of the first layer	180
				Max.Line Speed	46
	Wire Rope Diameter	Φ26
				Auxiliary Winch
	Max.Line Pull of the first layer	50
				Max.Line Speed	70
	Wire Rope Diameter	Φ16
			Mast	Mast Forward Inclination	5
	Mast Sideward Inclination	±4
			Hydraulic Pump	Max. Working Pressure	35
Depth and Diameter	Max. Drilling Diameter	1800
	Max. Drilling Depth	55(60)
			Drilling Pipe	Drilling Pipe	Φ406(440)
	Working State Quality	62

Drilling Equipment Yuchai

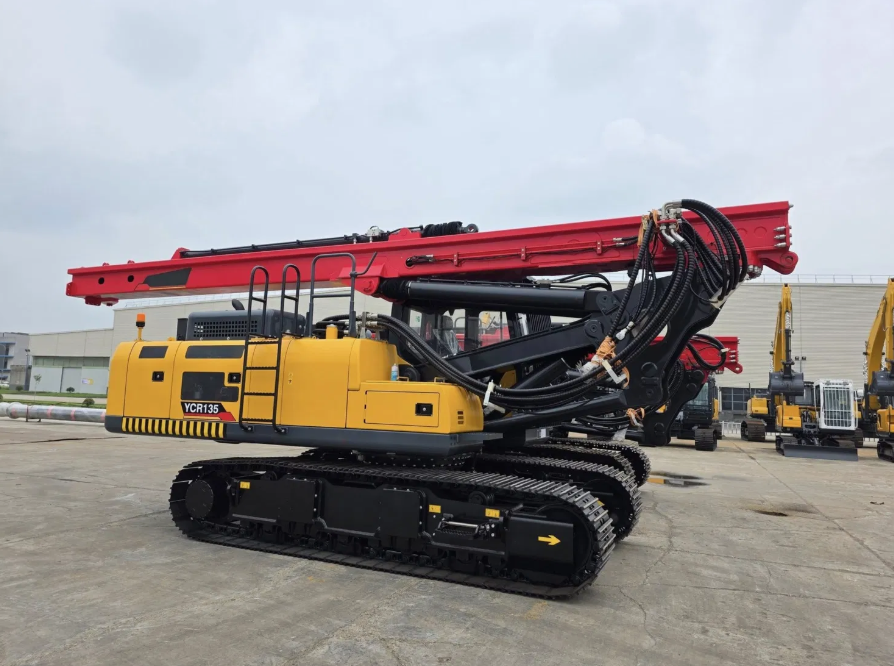

55M Rotary Drilling Rig Machine YCR135

Model: YCR135

Rotary Drilling Rig is a foundation construction machine used for drilling deep holes for pile foundations. It is widely applied in building, bridge, and infrastructure projects, offering high efficiency, stability, and precise drilling performance.
