Model / Name		904 Wheeled Tractor (Two-Tone Hood)
			Drive Type		Four-Wheel Drive (4WD) or Two-Wheel Drive (2WD)
Overall Dimensions (L×W×H)	mm	3350×1530×2300
Wheelbase	mm	2100
Common Wheel Track (Front/Rear)	mm	1200
Adjustable Wheel Track (Front/Rear)	mm	1100–1300
Min Ground Clearance	mm	380 (Front Axle Bottom)
Rear Axle		TE Heavy-Duty Axle, Maintenance-Free Front Axle
			Gear Count (Forward/Reverse)		8+8 Shuttle Side Shift
Max Theoretical Speed	km/h	45
Engine Connection		Direct Connection
			Safety Framework		Safety Frame
Engine Structure		Inline, Direct Injection, Water-Cooled, Four-Stroke
			Engine Manufacturer		Weifang, 90 HP
Engine Intake Type		Turbocharged
			Engine Cylinders		4
Engine Rated Power	kW	76.3
Engine Rated Speed	rpm	2400
Engine Cooling Method		Water-Cooled
			Steering System Type		Fully Hydraulic
Steering Mechanism		Steering Wheel
			Steering Type		Front-Wheel Steering
Tire Model		Front: 8.3-20, Rear: 12.4-28
			Suspension Type		Rear Three-Point Suspension
Hydraulic Output Groups		Three Groups
			Hydraulic Valve Pressure	MPa	17.5–18.0
PTO Spline Count		8
			PTO Standard Speed	rpm	540 / 720

Agricultrual Equipment HARMAC

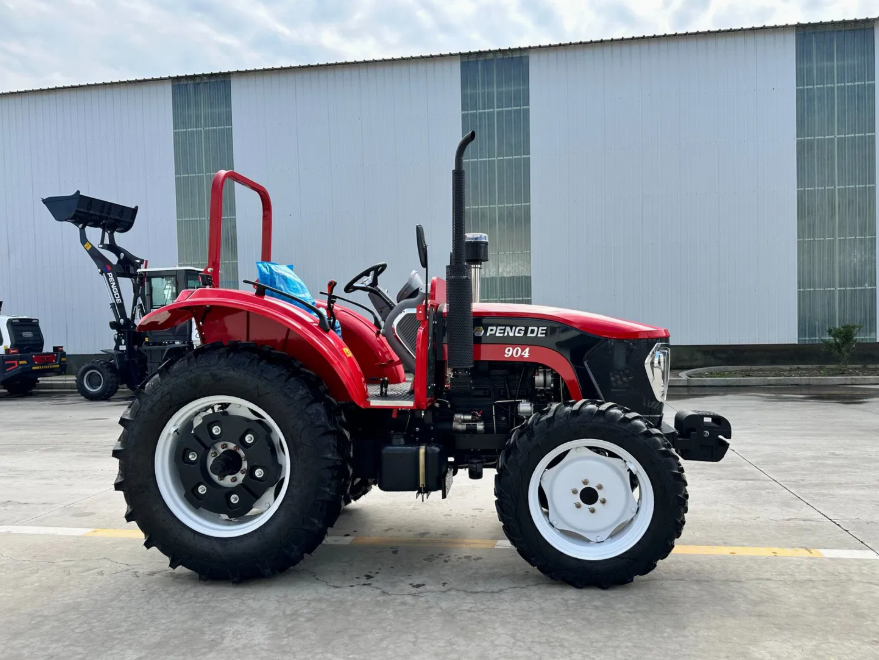

90HP Farm Tractor

Model: DE904

A farm tractor is a powerful vehicle designed for agricultural tasks, primarily used to tow or push farming equipment and machinery. Tractors are essential for various farming operations, such as plowing, tilling, planting, harvesting, and transporting materials.

Brand

HARMAC

Warranty

3 Years

ISO CE Certified

Worldwide Shipping

Strict QC
