| Model Name | Asphalt Distributor Truck |
| Driving Type | Left or Right hand drive |
| Color | Customized according to customer requirements |
| Weight | |
| Rated payload weight(kg) | 18000 |
| Curb weight(kg) | 8500 |
| Dimensions | |
| Wheelbase(mm) | 4500 |
| Overall Dimension(mm) | Approx.8500*2350*2950 |
| Max speed(km/h) | 90 |
| Engine | |
| Engine model | YC4Y22-200 |
| Engine type | Diesel engine |
| No. of cylinders | Straight-4 cylinders |
| Displacement(L) | 4.5 |
| Max. output (kw) | 147 |
| Max. Power speed (rmp) | 3500 |
| Max.torque (Nm) | 2230 |
| Emission standard | EURO III |
| Drive Line | |
| Transmission | 8speeds ,8forwards, 1reverse gear,manual operation |
| Steering | Power steering |
| Brake | Air brake |
| Cab | |
| Air container | Have |
| Standard configuration | ABS ,Electronic Assistance .Sound,parking sensors |
| Axle | |
| Front axle | 5tons |
| Rear axle | 10tons |
| Tire specification | |
| Tire specification | 10.00R20LT 18PR standard tire, 6tires+ 1 spare tire |
| Asphalt Distributor truck information | |
| Vehicle Type | Intelligent asphalt distributor truck |
| Structure and Materials | It adopts an elliptical or circular cross-section and a double-layer structure, with high-performance polyurethane foam insulation material filled in the middle. The inner liner is made of corrosion-resistant and high-temperature resistant special steel. |
| Capacity range | 3~20m³ |
| Key design | A deflector is installed inside the tank to reduce asphalt sloshing; the bottom is designed with a drainage slope angle for thorough cleaning; and high and low level gauges and observation holes are equipped. |
| Independent power unit | It is usually equipped with a dedicated diesel engine to provide power for the hydraulic system, asphalt pump, and control system of the entire vehicle. It is separated from the chassis driving system to ensure operational stability. |
| Fully hydraulic drive | The main actuating mechanisms (pumps, spray bar lifting and folding, mixing, etc.) all adopt hydraulic transmission, providing strong power and stable control. |
| Heating method | Heat transfer oil heating (mainstream): An independent burner heats the heat transfer oil, which circulates through the heat transfer oil pipes coiled inside the tank/interlayer, indirectly heating the asphalt. Advantages: Uniform heating, less prone to localized aging of asphalt. |
| Direct-fired heating: The flame of the burner directly heats the tank body or the built-in fire tube. The structure is relatively simple, but careful control is required to prevent asphalt aging. | |
| Smart Temperature Control | Through the use of multi-point temperature sensors and PID controllers, automatic constant temperature maintenance at a preset temperature is achieved, with temperature variations controlled within ±5ºC. |
Asphalt Distributor Truck
DOGNFENG

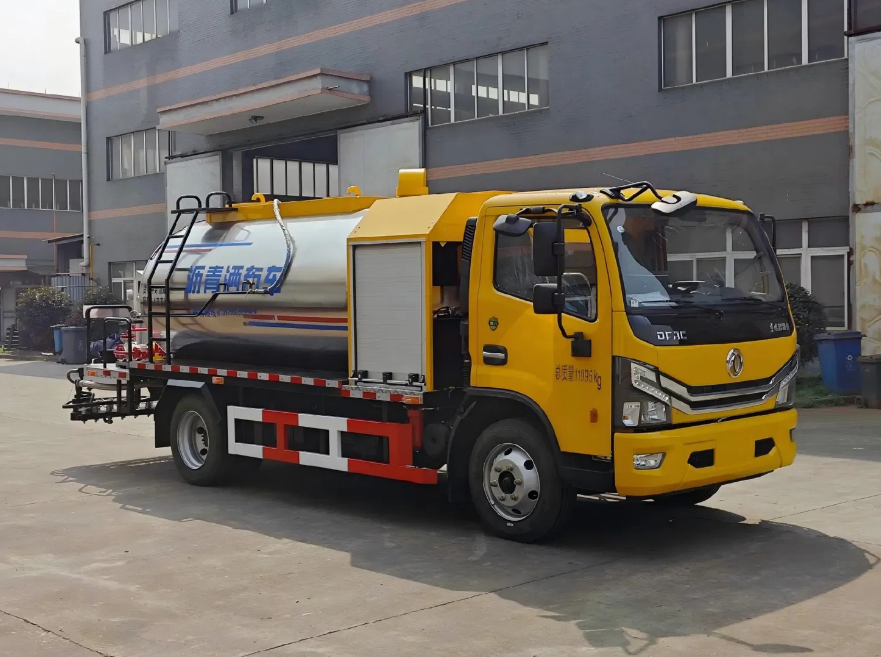

China Factory 4X2 LHD Rhd 5ton Asphalt Distributor Bitumen Spraying Truck
Model: DFA5161GLQ
The Asphalt Distributor Truck is engineered for professional asphalt spraying applications. Equipped with an intelligent control system and reliable heating technology, it provides uniform spraying performance for highways, urban roads, airport runways, and pavement maintenance.
Brand
DOGNFENG
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
