| ehicle Main Dimensions | Overall dimensions (L x W x H)mm | 7200×2300×2850 |
| Wheel base (mm) | 3800 | |
| Wheel track (front/rear) (mm) | 1960/1860 | |
| Approach/Departure angle(°) | 28/32 | |
| Weight in KGS | Tare Weight | 5340 |
| payload | 6025 | |
| Front axles loading capacity | 2700 | |
| Rear axles loading capacity | 5000 | |
| Max. driving speed(km/h) | 95 | |
| Engine | Brand | Yuchai |
| Horse Power(HP) | 120hp/129hp/140hp | |
| Emission standard | Euro III | |
| Gearbox | 6 forwards & 1 reverse | |
| Steering | Left hand drive/RHD | |
| Tire | 7.50R20, 6 tires with one spare | |
| Sewage Tank | ||
| Tank volume | 8000-10000 Liters | |
| Tank material | 6mm carbon steel | |
| Vacuum Pump | Chinese Vacuum Pump or Italy Vacuum Pump | |
| Sewage suction pipe | 8M | |
| Main Performance | Suction time ≤ 5min, | |
| effective suction range ≥ 8 | ||
| Other equipment | Oil-gas separator, water-gas separator, four-way valve, anti-flow valve, washing device, pressure gauge, ball valve | |
| Painting | Customized painting color and logo as required. | |
Septic Truck
DONGFENG

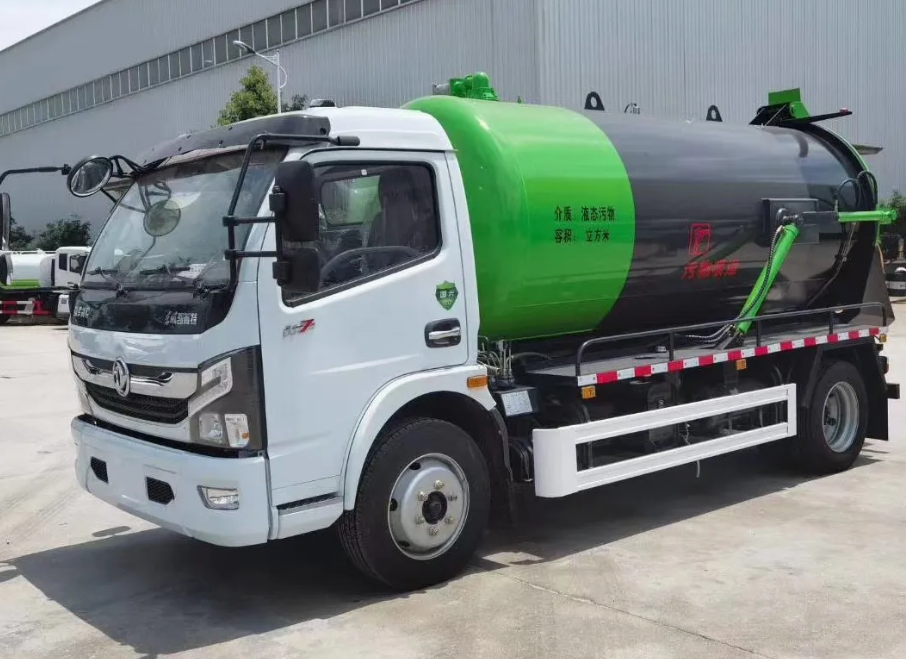

DONGFENG 4X2 Vacuum Sewage Pump Truck Septic Fecal Suction Truck
Model: DF1235N5265F
HARMAC supplies high-quality septic trucks for efficient sewage collection, transportation, and disposal. Featuring powerful vacuum pumps, corrosion-resistant tanks, and reliable chassis from ISUZU, FAW, Dongfeng, SINOTRUK, and more. OEM and customized solutions are available for global markets.
Brand
DONGFENG
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
