| Overall dimensions | mm | 8600×2500×3450 | ||
| Water tank dimention | mm | 4850×1550×1250 (6m3) | ||
| GVW | kg | Appro×19000 | ||
| Curb weight | kg | Appro×10550 | ||
| Payload | kg | Appro×8450 | ||
| Wheel base | mm | 4500 | ||
| F/R track base | mm | 1940/1860 | ||
| F/R suspension | mm | 1500/2435 | ||
| Approach/departure angle | ° | 16/13 | ||
| Max speed | km/h | 90 | ||
| Axle Load | kg | 7000/12000 | ||
| Tire specification | 10.00-20 16PR | Number of axles | 2 | |
| Engine model | B190-33 | Diesel, 6 Cylinder, direct line, water cooling | ||
| Engine performance | ml/kw/hp | 5900 /140 /190 | ||
| Steering | Power | Transmission | 8F&1R | |
| Cab passenger | 5 | Electric System | 24V | |
| Tank material | Carbon steel | Emission standard | Eu 2 | |
| Performance Information | ||||
| Fire Cannon | BS30 , 40L/S/1Mpa, | Working Range | >50 m | |
| Fire Pump | CB10/40 | Performance | 40L/s , 1.0Mpa | |
Fire Truck
DONGFENG

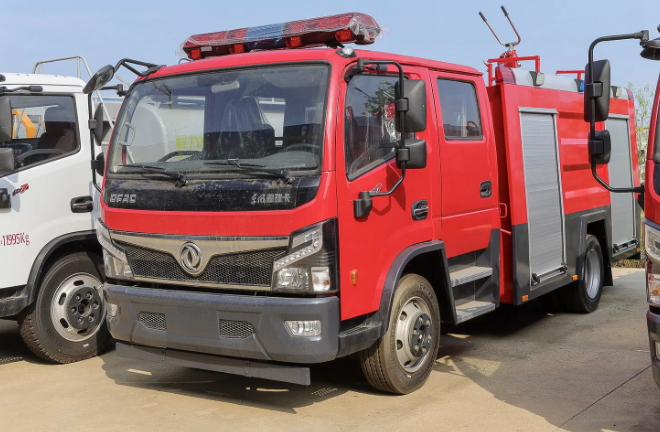

Dongfeng Water Tank Fire Truck
Model: DFH5828TG
Reliable Fire Fighting Vehicles for Municipal, Industrial, Airport, and Emergency Rescue Applications. Available in Water Tank, Foam, Rescue, and Custom Configurations.
Brand
DONGFENG
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
