| Driving Type | 4*2 | |
| Max Speed (km/h) | 90 | |
| Overall dimension(mm) | 7760×2500×2880 (mm) | |
| Mass in working order( kg) | 8495 | |
| GVW( kg) | 16000 | |
| Wheelbase(mm) | 4200 | |
| Tire | 12.00R20 | |
| Clutch | Single-plate dry diaphragm spring clutch | |
| Steering | Hydraulic steering with power assistance | |
| Gear box | 6-speed | |
| Engine | Model | WD615.62 EURO II |
| Horse power | 266HP | |
| Braking system | Service Brake | Compressed air brake |
| Park Brake | Spring energy | |
| Eletric system | 24v | |
| Upper-Body specification | ||
| Tank Volume (m3) | 8 | |
| Asphalt pump discharge(L/min) | 300 | |
| Distribution width measurement(mm) | 4500~6000 | |
| Distribution height from ground level(mm) | 200~450 | |
| Distribution quantitative(L/m2) | 0.2-3 | |
| Burner | G10 | |
| Asphalt pump | QGB270 | |
| Asphalt pump hydraulic drive motor | 05-110-BD31 | |
| Hydraulic pump | CBQ540-L | |
| Control method | Manually controlled two by one | |
| Heating Model | Thermal fuel Automatic heating | |
| Conducting oil pump | 40-25-160 | |

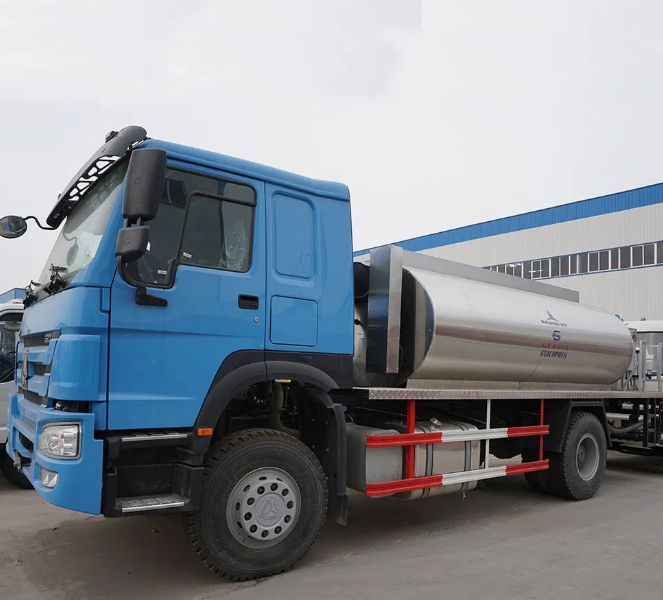

Asphalt Distributor Truck
Sinotruk Ace Asphalt Sprayer Truck 6-Ton Compact Road Paving Equipment Asphalt Truck for Sale
