| name | Model, Specifications |
| Vehicle Brand | JFW5181GLQC6 |
| engine | Dachai 220 horsepower |
| Overall vehicle dimensions | 8300×2500×3200 |
| Total mass | 18000kg |
| curb weight | 9500kg |
| Rated load capacity | 8370kg |
| tire | 10.00R20 tires |
| wheelbase | 4500mm |
| gearbox | 8 gears |
| Asphalt tank capacity | 10 cubic meters |
| Insulation layer thickness | 50mm |
| Stainless steel outer casing | 1 thick stainless steel |
| Heating method | Riello G20+ diesel burner from Italy provides full-process heat conduction heating. |
| Nozzle quantity control | 36 (one-control, one-smart nozzles) |
| hydraulic pump | GBQ550-L |
| proportional valve | EFBG-03-160-HF |
| Asphalt pump motor | 05-110-BD31 |
| Asphalt pump | QGB950 imported gears |
| hand spray gun | 5-meter hose + handheld spray bar |
| Thermal oil pump | RY32-32-160 |
| Control method | Cab-mounted touchscreen computer control + rear work platform (backup) |
| Spraying medium | Emulsified asphalt, modified asphalt, hot asphalt, etc. |
Asphalt Distributor Truck
ACE

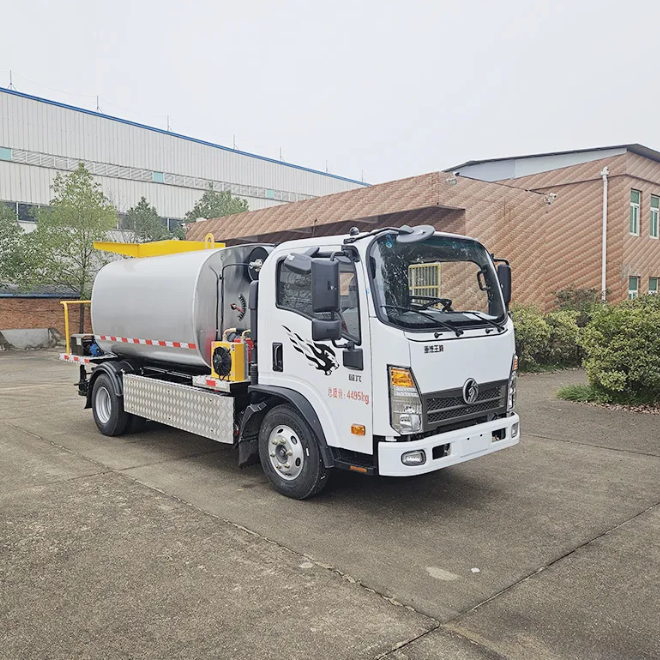

Sinotruk Ace Asphalt Sprayer Truck 6-Ton Compact Road Paving Equipment Asphalt Truck for Sale
Model: ZZ1257M4647D1
The Asphalt Distributor Truck is engineered for professional asphalt spraying applications. Equipped with an intelligent control system and reliable heating technology, it provides uniform spraying performance for highways, urban roads, airport runways, and pavement maintenance.
Brand
ACE
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
