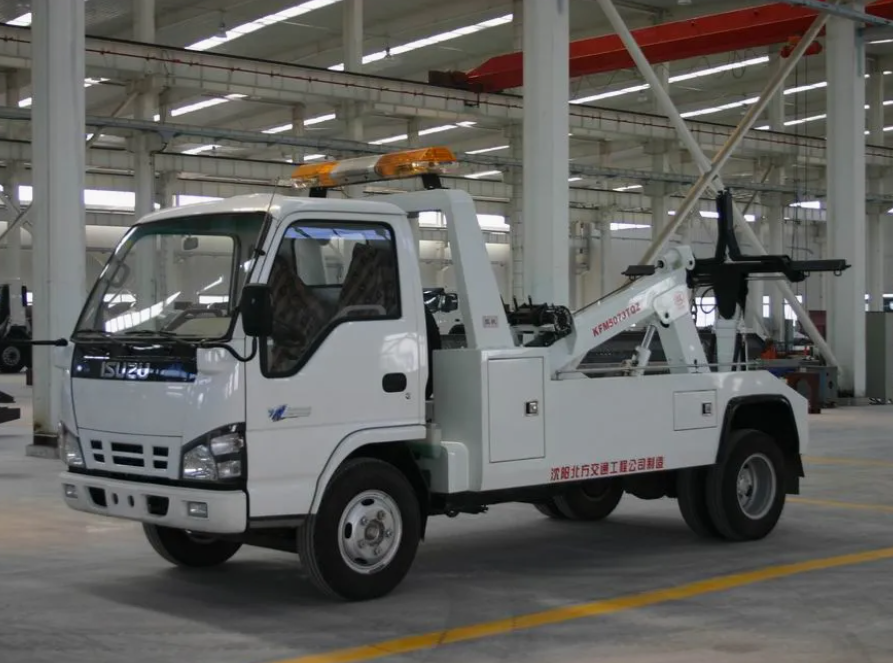

| Boom Structure | Rated towing weight | kg | 7200 |
| Rated lifting weight | kg | 3000 | |
| Max. Lifting weight of full extension boom | kg | 1500 | |
| Effective length of boom | mm | 1800 | |
| Extension traveling of boom | mm | 650 | |
| Folding angle of boom | ° | 98 | |
| Under lift Structure | Rated hanging weight | kg | 1500 |
| The height from hook to the ground | mm | 3500 | |
| Numbers of winch | piece | 1 | |
| Max. Pulling power of winch | kg | 4000 | |
| Diameter of steel cable | mm | 10 | |
| Length of steel cable | m | 25 | |
| Min. Speed of steel cable | m/min | 4.5 | |
| Rotation angle | ° | 32 | |
| External dimension | mm | 5830×1980×2425 | |
| Chassis model | I NKR77PLPACJAY | ||
| Axle base | mm | 3815 | |
| Vehicle | Drive | 4×2 | |
| Parameters | The whole weight of empty load | kg | 4075 |
| Load of front axle of empty load | kg | 2000 | |
| Load of rear axle of empty load | kg | 2075 | |
| The whole weight of full load | kg | 7205 | |
| Load of front axle of full load | kg | 2500 | |
| Load of rear axle of full load | kg | 4705 | |
| (/) | mm | 1504/1425 | |
| Wheel base (front/rear axle) | |||
| Front suspension | mm | 1015 | |
| Rear suspension | mm | 790 | |
| Approach angle | º | 24 | |
| Departure angle | º | 26 | |
| Min. Turning diameter | m | ≤15.2 | |
| Max. Speed | km/h | 100 | |
| Grade ability | % | 30 | |
| Min. Ground clearance | mm | 190 | |
| Engine model | – | 4KH1-TC | |
| Rated power | kw/r/min | 96/3400 | |
| Max. Torque | n@m/r/min | 280/1700 | |
| Engine emission | L | 2.999 | |
| Fuel type | Diesel | ||
| Standard of emission | III | ||
| EN III | |||
| Tire size | 7.00-16(option7.50-15,7.50R15,7.00R16) | ||
| Persons | 2 |
