| name | Model, Specifications |
| Vehicle Brand | JFW5181GLQC6 |
| engine | Dachai 220 horsepower |
| Overall vehicle dimensions | 8300×2500×3200 |
| Total mass | 18000kg |
| curb weight | 9500kg |
| Rated load capacity | 8370kg |
| tire | 10.00R20 tires |
| wheelbase | 4500mm |
| gearbox | 8 gears |
| Asphalt tank capacity | 10 cubic meters |
| Insulation layer thickness | 50mm |
| Stainless steel outer casing | 1 thick stainless steel |
| Heating method | Riello G20+ diesel burner from Italy provides full-process heat conduction heating. |
| Nozzle quantity control | 36 (one-control, one-smart nozzles) |
| hydraulic pump | GBQ550-L |
| proportional valve | EFBG-03-160-HF |
| Asphalt pump motor | 05-110-BD31 |
| Asphalt pump | QGB950 imported gears |
| hand spray gun | 5-meter hose + handheld spray bar |
| Thermal oil pump | RY32-32-160 |
| Control method | Cab-mounted touchscreen computer control + rear work platform (backup) |
| Spraying medium | Emulsified asphalt, modified asphalt, hot asphalt, etc. |
Asphalt Distributor Truck
FAW

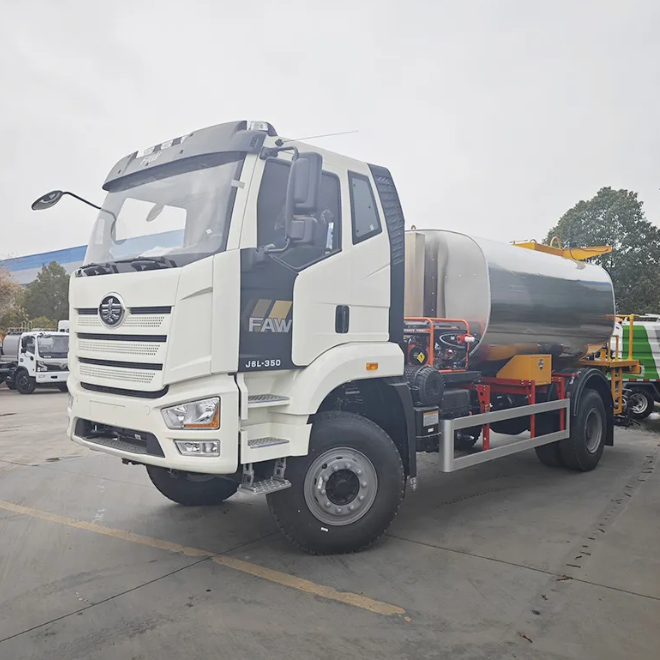

FAW 10cbm Asphalt Distributor Truck, Road Paving Truck, Emulsified Asphalt Truck
Model: JFW5181GLQC6
The Asphalt Distributor Truck is engineered for professional asphalt spraying applications. Equipped with an intelligent control system and reliable heating technology, it provides uniform spraying performance for highways, urban roads, airport runways, and pavement maintenance.
Brand
FAW
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
